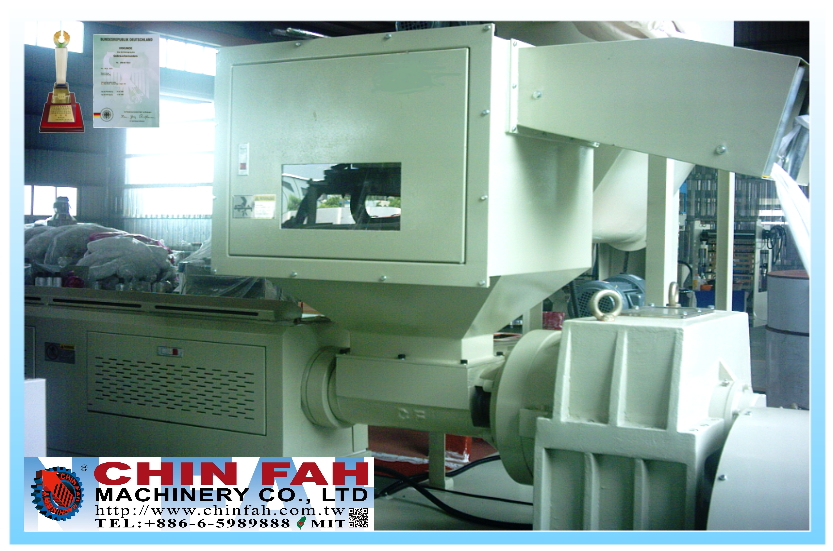

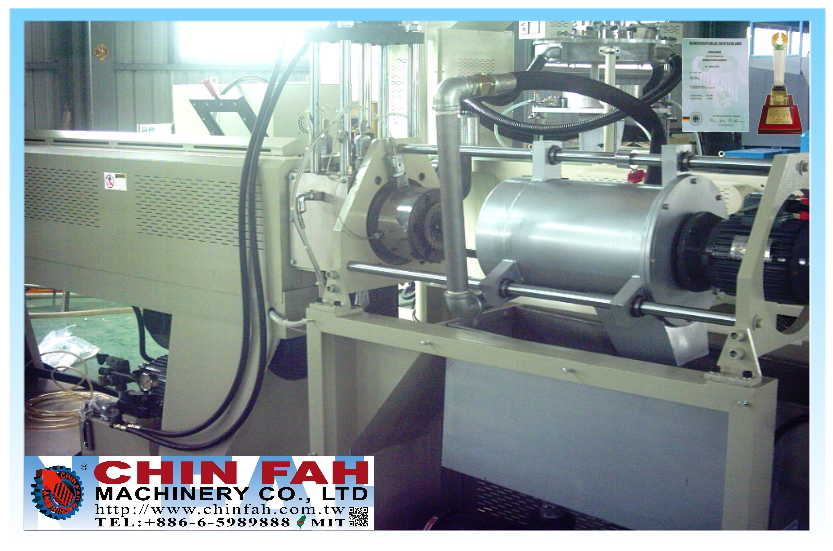

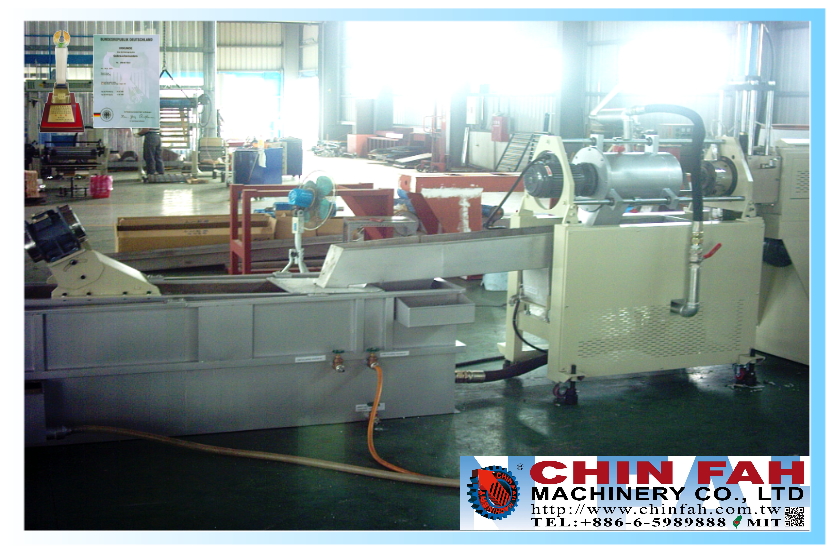

YF-TR75W Plastic Waste Film Recycling Machine
YF-TR75W Plastic Waste Film Recycling Machine 1 YF-TR75W Plastic Waste Film Recycling Machine 2 YF-TR75W Plastic Waste Film Recycling Machine 3 YF-TR75W Plastic Waste Film Recycling Machine 4

YF-TR series Plastic Recycling Machine

Here’s the information you entered:

Why Choose Us? Applications Specifications

Simple in Design. Flexible in Operation

Recycling Processes of Repro-Flex

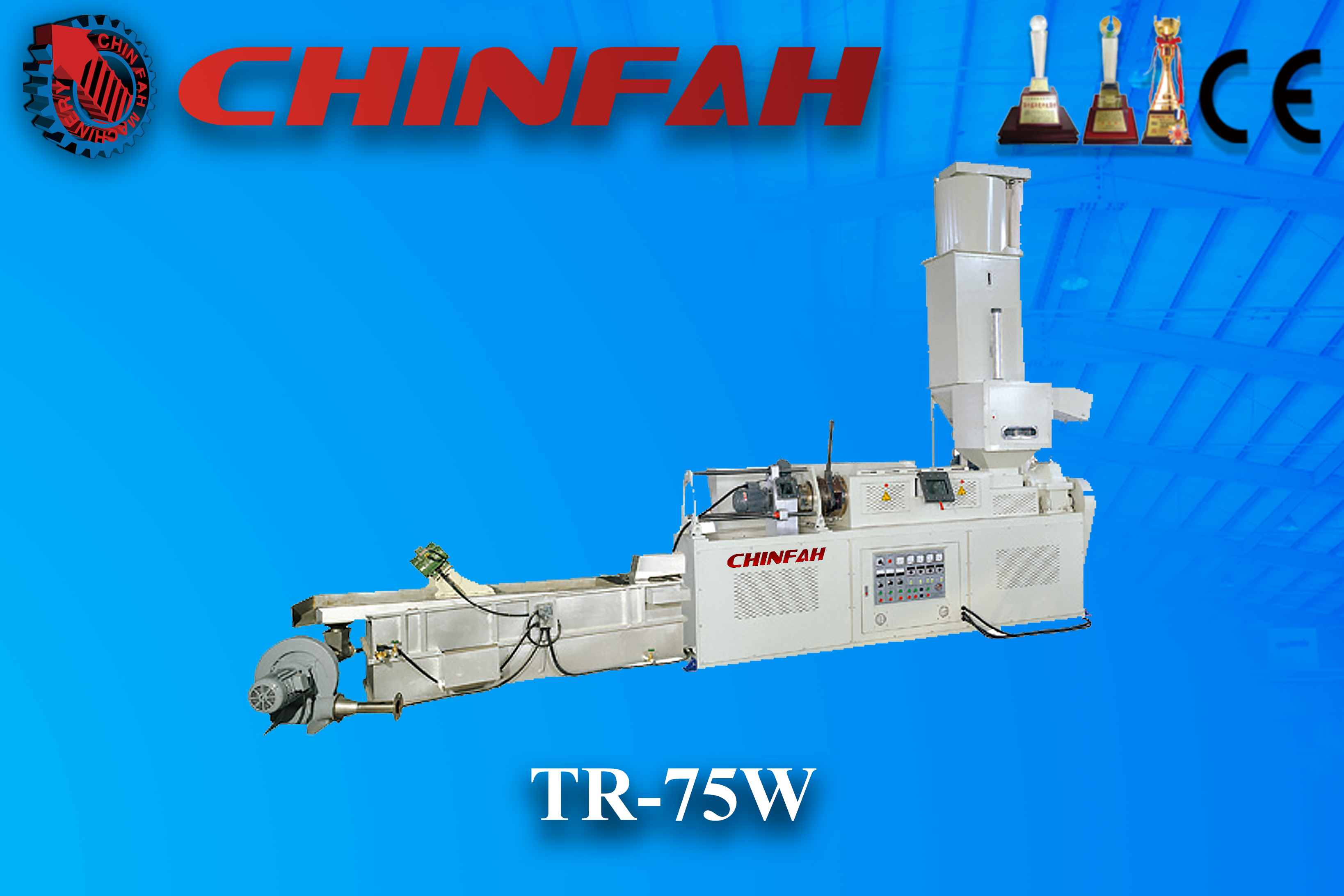

Plastic Recycling Machine,transparent,CHINFAHTR-75W

Our state-of-the-art machines are designed to be user-friendly and efficient.

We offer flexible solutions that adapt to your production needs.

Join us in making sustainable choices for a better future.

Learn More

Applications

Our customized machines are ideal for various applications:

  • Agricultural film recycling
  • Post-industrial plastic scraps
  • General-purpose waste recycling
  • Plastic bag manufacturing for food packaging
  • Reusable shopping bags production
  • Extrusion and production of plastic sheets

Plastic Waste Recycling Pelletizing Machine – YF-TR Series

Die Face Cutting Type for Efficient Pellet Production

Product Description

  • Material to be used: HDPE, LDPE, LLDPE, PP
  • Suitable for plastic films, scraps, flakes, lumps, and light printed films
  • Die face cutting system for consistent pellet shape
  • Optional equipment available: crusher, screw conveyor, forced feeding device

Product Specifications

  • Special screw design with long ratio for excellent mixing and stable extrusion
  • Screw & barrel made of high-quality alloy steel with nitriding, polishing, grinding, and hard plating
  • Two-stage gear reducer with precision ground treatment for extended operation life
  • Smooth transmission with low noise level
  • Standard spare parts are easy to replace and maintain

Optional Equipment

  • Crusher
  • Conveying Screw
  • Forced Feeding Device
  • Storage Tank

Note: All specifications and images above are for reference only.

Need more details? Contact us anytime.

E-mail: sales@chinfah.com.tw

Model YF-TR-85 YF-TR-100 YF-TR-120 YF-TR-150
Raw Materials HDPE / LDPE / LLDPE / PP
Output 100–150 kg/hr 120–220 kg/hr 180–300 kg/hr 250–400 kg/hr
Cutting Type Die Face Cutting
Main Product Bean or Cylinder Shape Pellets
Screw Diameter 85 mm 100 mm 120 mm 150 mm
