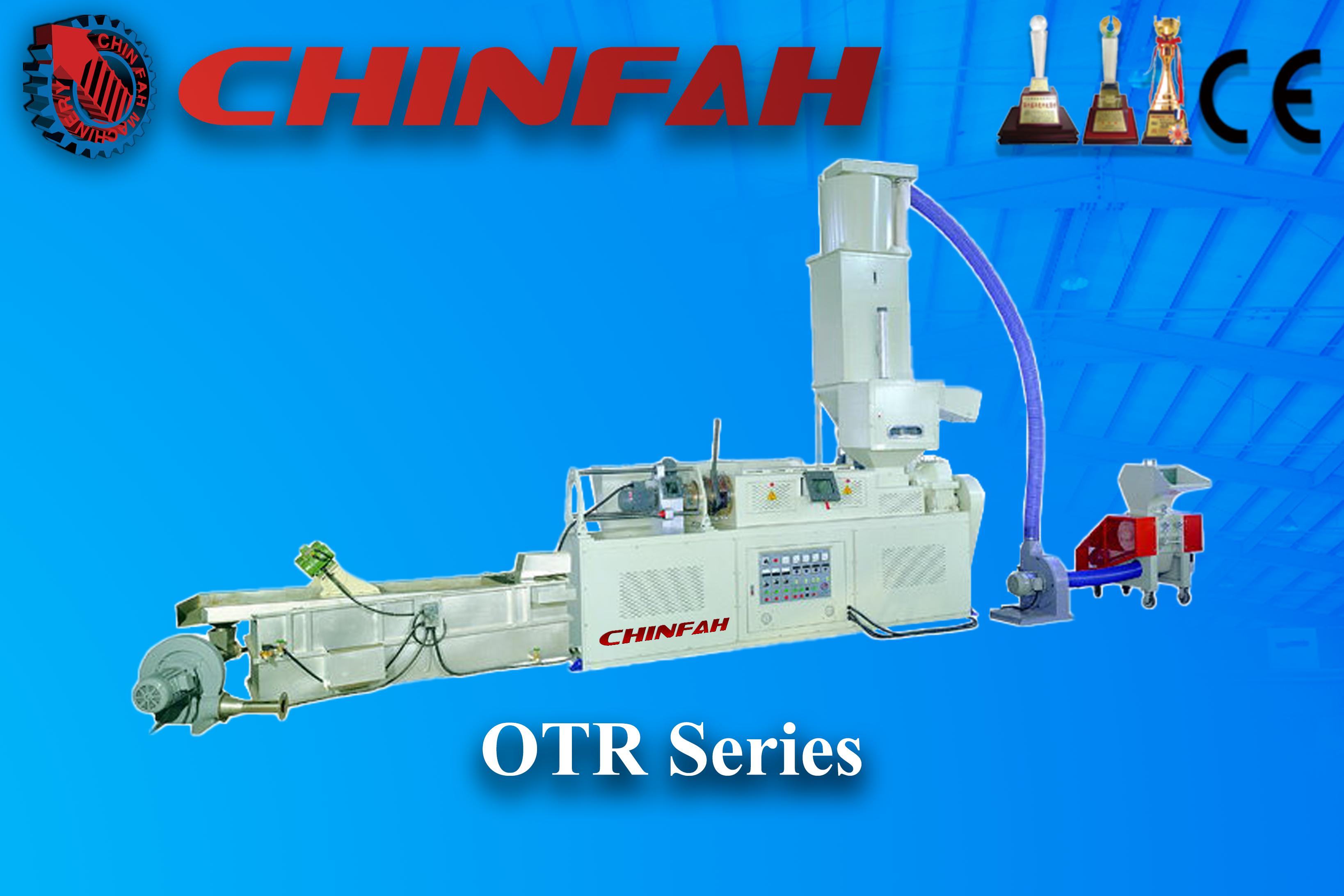

OTR-Series Plastic Recycling Machine
Simple in Design. Flexible in Operation
Recycling Processes of Repro-Flex
Our state-of-the-art machines are designed to be user-friendly and efficient.
We offer flexible solutions that adapt to your production needs.
Join us in making sustainable choices for a better future.
Learn MoreApplications
Our customized machines are ideal for various applications:
- Agricultural film recycling
- Post-industrial plastic scraps
- General-purpose waste recycling
- Plastic bag manufacturing for food packaging
- Reusable shopping bags production
- Extrusion and production of plastic sheets

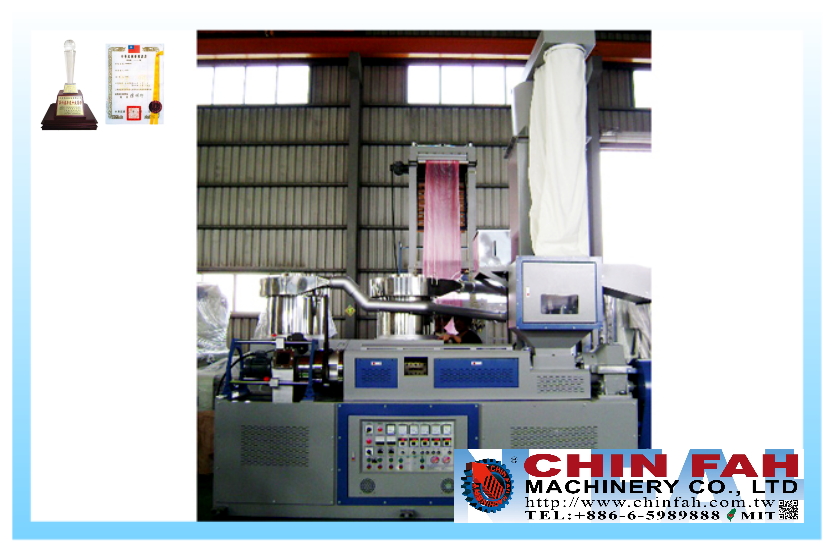

3-in-1 Recycling Pelletizer – YF-OTR Series
Integrated Feeding System for Efficient Film Waste Recycling
Product Description
- 3-in-1 Feeding System: Crusher + Film-in-Roll Device + Feeding Device.
- Materials: HDPE, LDPE, LLDPE, PP.
- Ideal for in-house factory recycling of clean or washed film waste.
- Die face cutting system for bean-type pellets.
- User-friendly design reduces labor costs.
Product Specifications

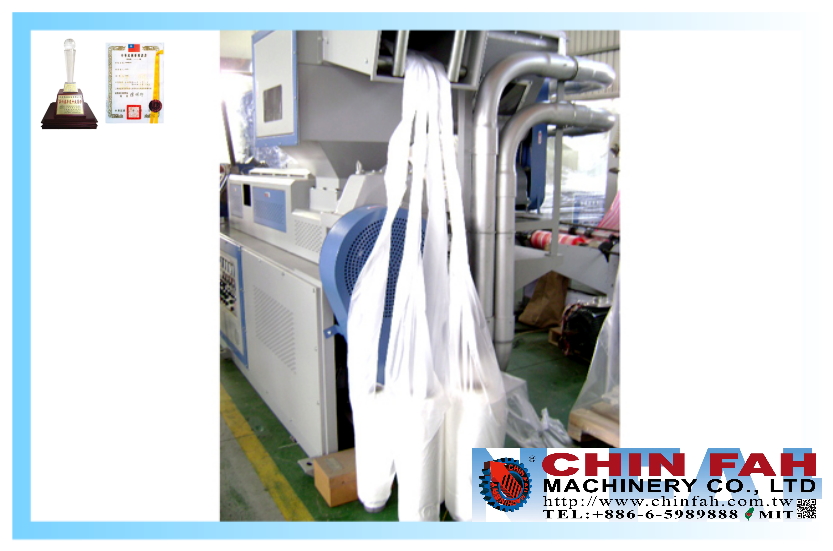

- Crusher: Reduces plastic waste to compact pieces, blown into the storage tank.

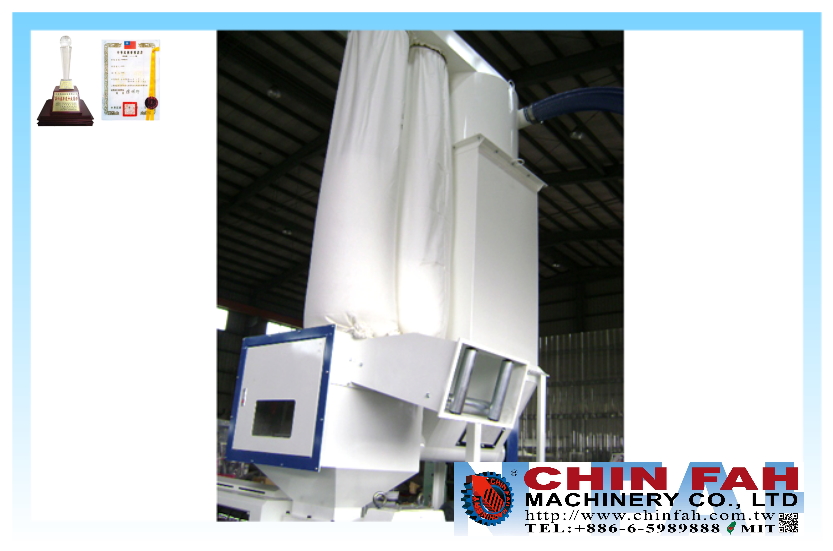

- Waste Storage Tank (Cyclone Hopper): Collects plastic pieces for feeding.
- Screw + Inverter: Conveys waste automatically to the extruder only when full (energy saving).
- Forced Feeding Device: Ensures smooth feeding into the extruder.
- Hopper: Stores material before extrusion.
- Vented Extruder: Designed for inked, foamed, and wet waste. Optional vacuum pump for better venting.
Note: All specifications and images above are for reference only.
Need more details? Contact us anytime.
E-mail: sales@chinfah.com.tw
| Model | YF-OTR-75A | YF-OTR-80W |
|---|---|---|
| Configuration | Crusher + Blower + Storage Tank + Air Disperse Tank + Screw + Inverter + Feeding Device + Mixer Screw + Force Feeding Air Cylinder | |
| Raw Material | HDPE / LDPE / PP | |
| Cooling Type | Air-Cooling | Water-Cooling |
| Max. Output | 40–60 kg/hr | 90–100 kg/hr |
| Die Head Type | Die Face Cutting | |
| Pellet Type | Bean Type Pellets | |
| Screw Diameter | 75 mm | 80 mm |
