CHNV Series Two-Stage 3-in-1 Plastic Recycling Machine
Simple in Design. Flexible in Operation
Recycling Processes of Repro-Flex
Our state-of-the-art machines are designed to be user-friendly and efficient.
We offer flexible solutions that adapt to your production needs.
Join us in making sustainable choices for a better future.
Learn MoreApplications
Our customized machines are ideal for various applications:
- Agricultural film recycling
- Post-industrial plastic scraps
- General-purpose waste recycling
- Plastic bag manufacturing for food packaging
- Reusable shopping bags production
- Extrusion and production of plastic sheets
Plastic Waste Film Recycling Machine

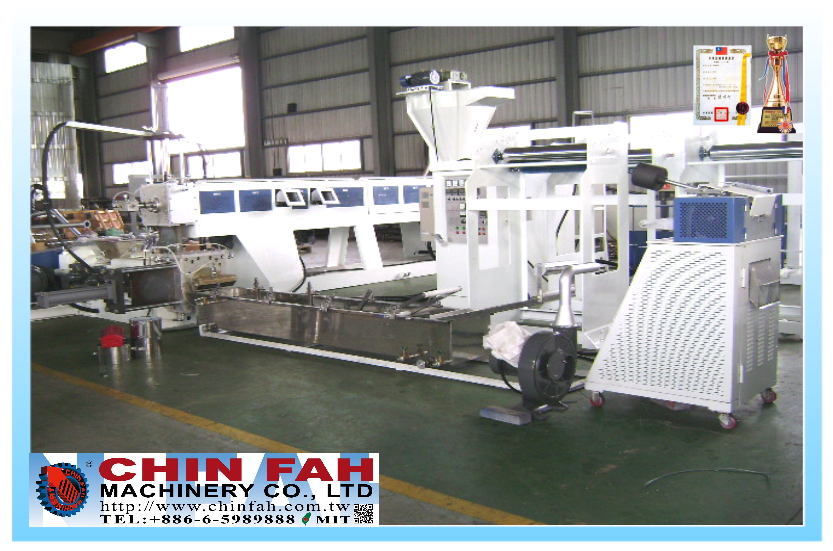

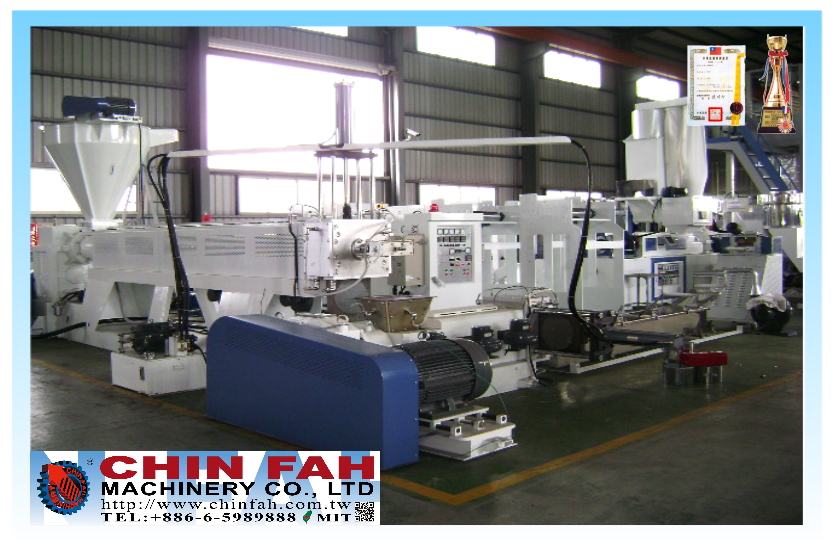

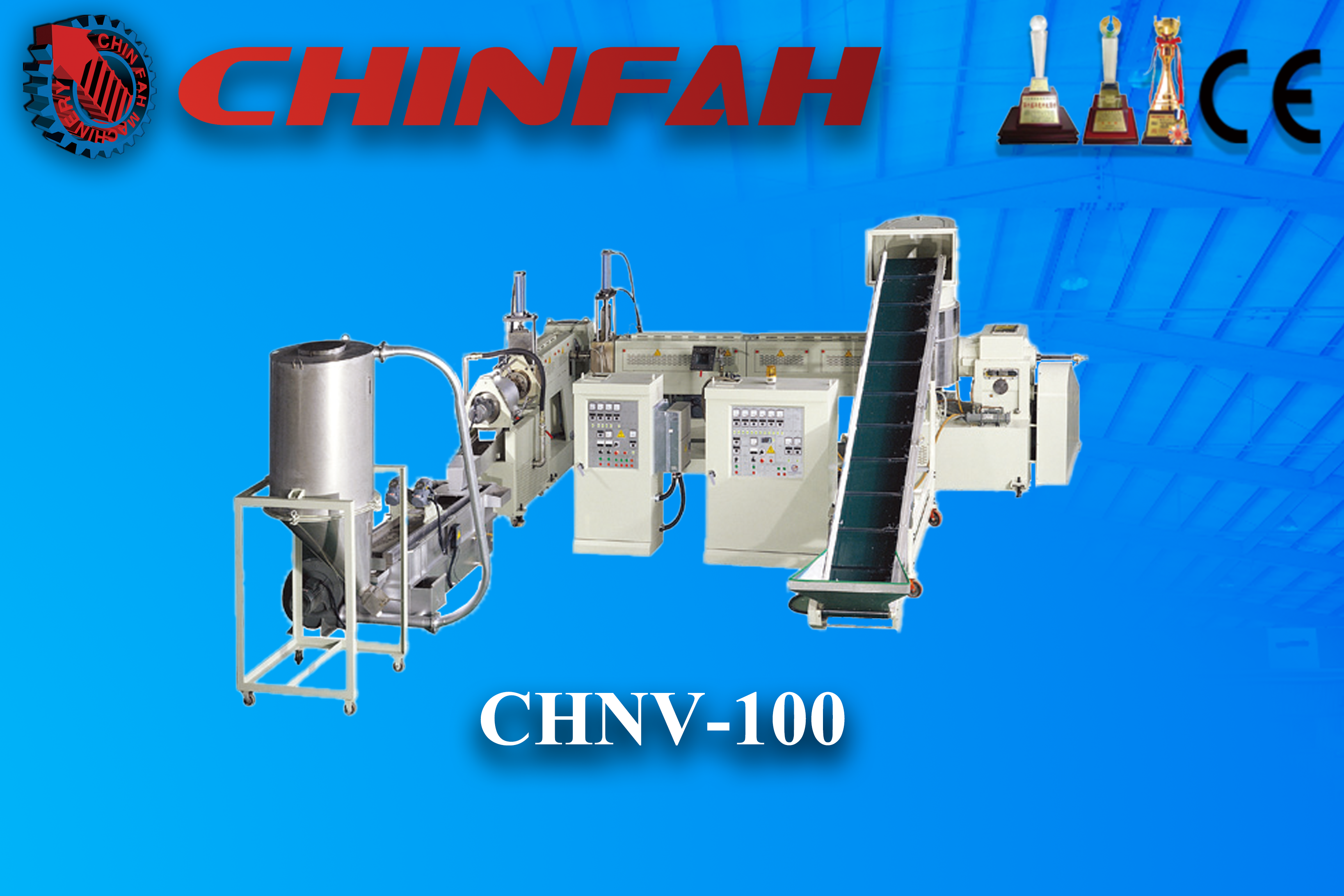

Plastic Recycling Machine,Two Stage,3in1,CHNV-100
Product Description
- 3-in-1 design: Conveyor + Shredding Drum + Extruder + Pelletizer.
- Materials: HDPE, LDPE, LLDPE, PP.
- Perfect for clean/washed film waste – produces high-quality bean type pellets.
- Die face cutting system.
- Easy operation, saves time and labor costs.
Product Specifications
- Automatic film feeding via shredding motor amperage detection.
- Energy-saving shredding drum: up to 40% savings.
- Functions: chopping, homogenizing, pre-heating, moisture control.
- Water cooling + vibration screening for consistent pellet quality.
Optional Equipment
- Metal Detector
- Storage Tank
- Vacuum Pump
- Separator
Note: All specifications and pictures above are for reference only.
If you need more information, please feel free to contact us.
E-mail: sales@chinfah.com.tw
| Model | YF-CHNV-100 | YF-CHNV-135 | ||
|---|---|---|---|---|
| Suitable Resin | HDPE/LDPE/LLDPE/PP | |||
| Max. Output | 200–300 kg/hr | 400–600 kg/hr | ||
| Main Product | Bean Type of Pellets | |||
| Cutting Type | Die Face Cutting | |||
| Screw Diameter | 100 mm | 135 mm | ||
Contact us
If you have any questions or need more information, please feel free to contact us.
