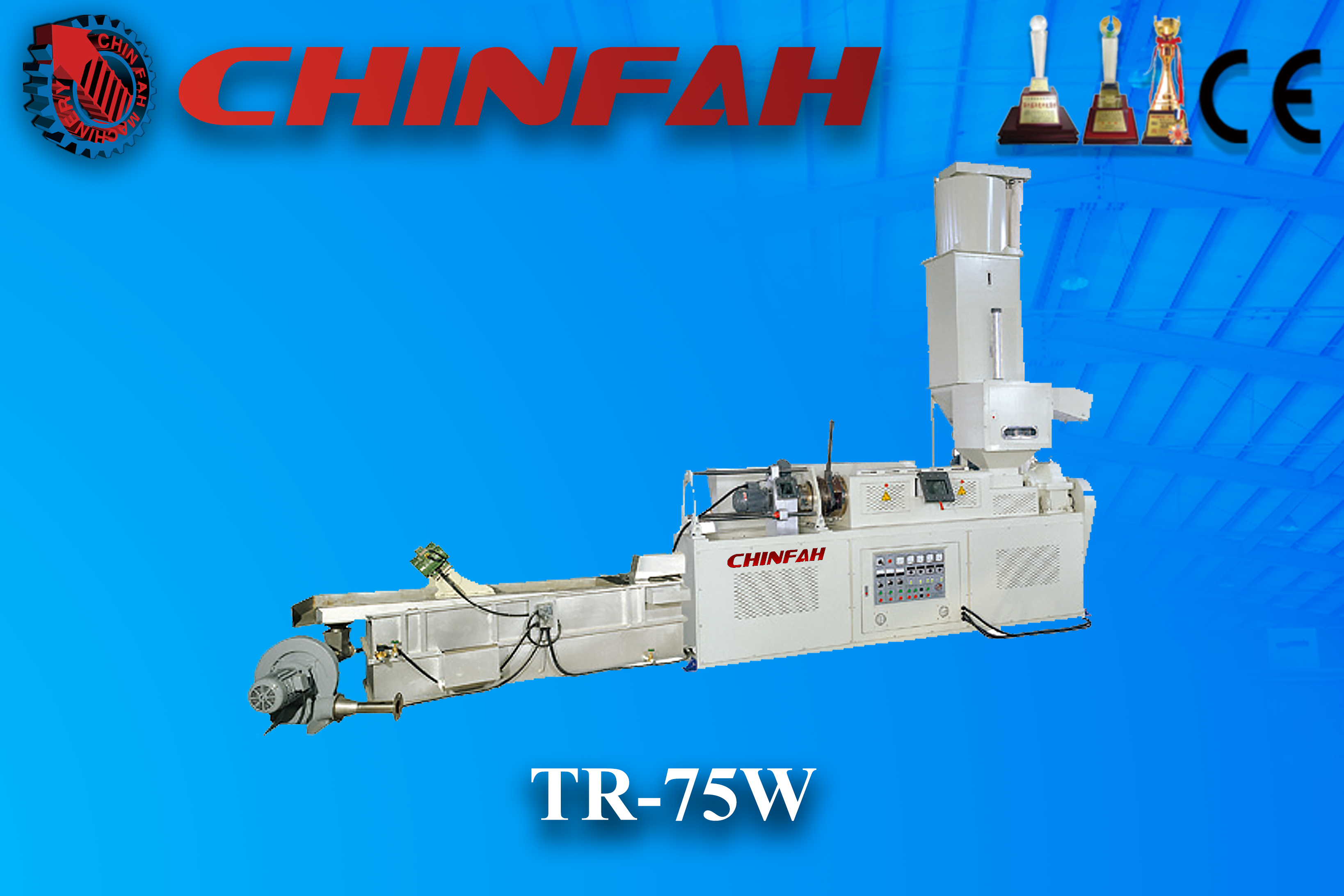

TR-Series Plastic Recycling Machine
Die face cutting recycling machine for HDPE, LDPE, LLDPE and PP films, scraps, flakes, lumps and light printed film — four output sizes.
Build your inquiry
Fill this in and we'll turn it into a ready-to-send message.
Simple in design. Flexible in operation.
The recycling processes of Repro-Flex adapt to your waste stream — from raw material form and contamination level to your target output.
Where recycled pellets go next
Our customized machines are ideal for these applications.
Agricultural Film Recycling
Post-Industrial Plastic Scraps
General-Purpose Waste Recycling
Food Packaging Bag Production
Reusable Shopping Bags
Plastic Sheet Extrusion
Die Face Cutting for consistent pellets
- Runs HDPE, LDPE, LLDPE and PP
- Handles films, scraps, flakes, lumps and light printed film
- Die face cutting system for consistent pellet shape
Special screw design
Long ratio screw for excellent mixing and stable extrusion.
High-quality alloy steel
Screw and barrel are nitrided, polished, ground and hard-plated for long service life.
Two-stage gear reducer
Precision-ground for extended operation life, with smooth, low-noise transmission.
Optional equipment
Compare models
| Spec | YF-TR-85 | YF-TR-100 | YF-TR-120 | YF-TR-150 |
|---|---|---|---|---|
| Raw materials | HDPE / LDPE / LLDPE / PP | |||
| Output | 100–150 kg/hr | 120–220 kg/hr | 180–300 kg/hr | 250–400 kg/hr |
| Cutting type | Die face cutting | |||
| Main product | Bean or cylinder shape pellets | |||
| Screw diameter | 85mm | 100mm | 120mm | 150mm |
All specifications and images are for reference only. Contact CHINFAH to confirm the exact configuration for your line.
TR-Series in action
Talk to our engineers
Send your production requirements and we'll follow up with a tailored recommendation.
