HNV-Series 3-in-1 Plastic Recycling Machine
3-in-1 recycling machine (conveyor, shredding drum, extruder, pelletizer) for HDPE/LDPE/PP film waste, producing bean-type pellets via die face cutting. Four output sizes.
Build your inquiry
Fill this in and we'll turn it into a ready-to-send message.
Simple in design. Flexible in operation.
The recycling processes of Repro-Flex adapt to your waste stream — from raw material form and contamination level to your target output.
Where recycled pellets go next
Our customized machines are ideal for these applications.
Agricultural Film Recycling
Post-Industrial Plastic Scraps
General-Purpose Waste Recycling
Food Packaging Bag Production
Reusable Shopping Bags
Plastic Sheet Extrusion
Engineered piece by piece
- 3-in-1 design: conveyor + shredding drum + extruder + pelletizer
- Runs HDPE, LDPE and PP
- Perfect for clean or washed film waste — produces high-quality bean-type pellets
- Die face cutting system
- Easy operation, saves time and labor cost
Automatic film feeding
Feed rate is controlled via shredding motor amperage detection.
Energy-saving shredding drum
Up to 40% energy savings versus a conventional shredder.
Water cooling + vibration screening
Chopping, homogenizing, pre-heating and moisture control keep pellet quality consistent.
Optional equipment
Compare models
| Spec | YF-HNV-85 | YF-HNV-100 | YF-HNV-120 | YF-HNV-135 |
|---|---|---|---|---|
| Suitable resin | LDPE / HDPE / PP | |||
| Max. output | 150–200 kg/hr | 200–350 kg/hr | 250–400 kg/hr | 300–450 kg/hr |
| Main product | Bean type pellets | |||
| Cutting type | Die face cutting | |||
| Screw diameter | 85mm | 100mm | 120mm | 135mm |
All specifications and images are for reference only. Contact CHINFAH to confirm the exact configuration for your line.

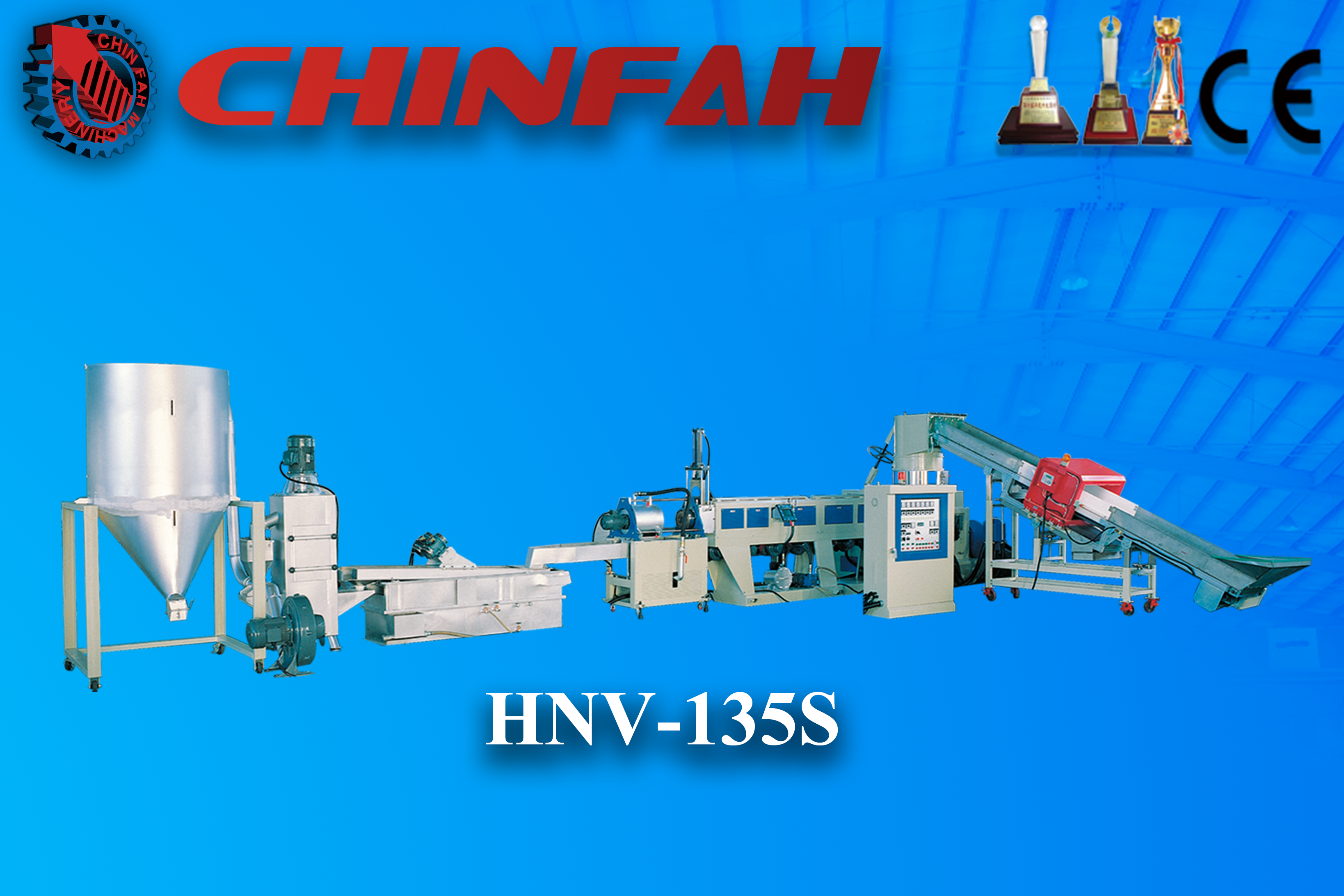

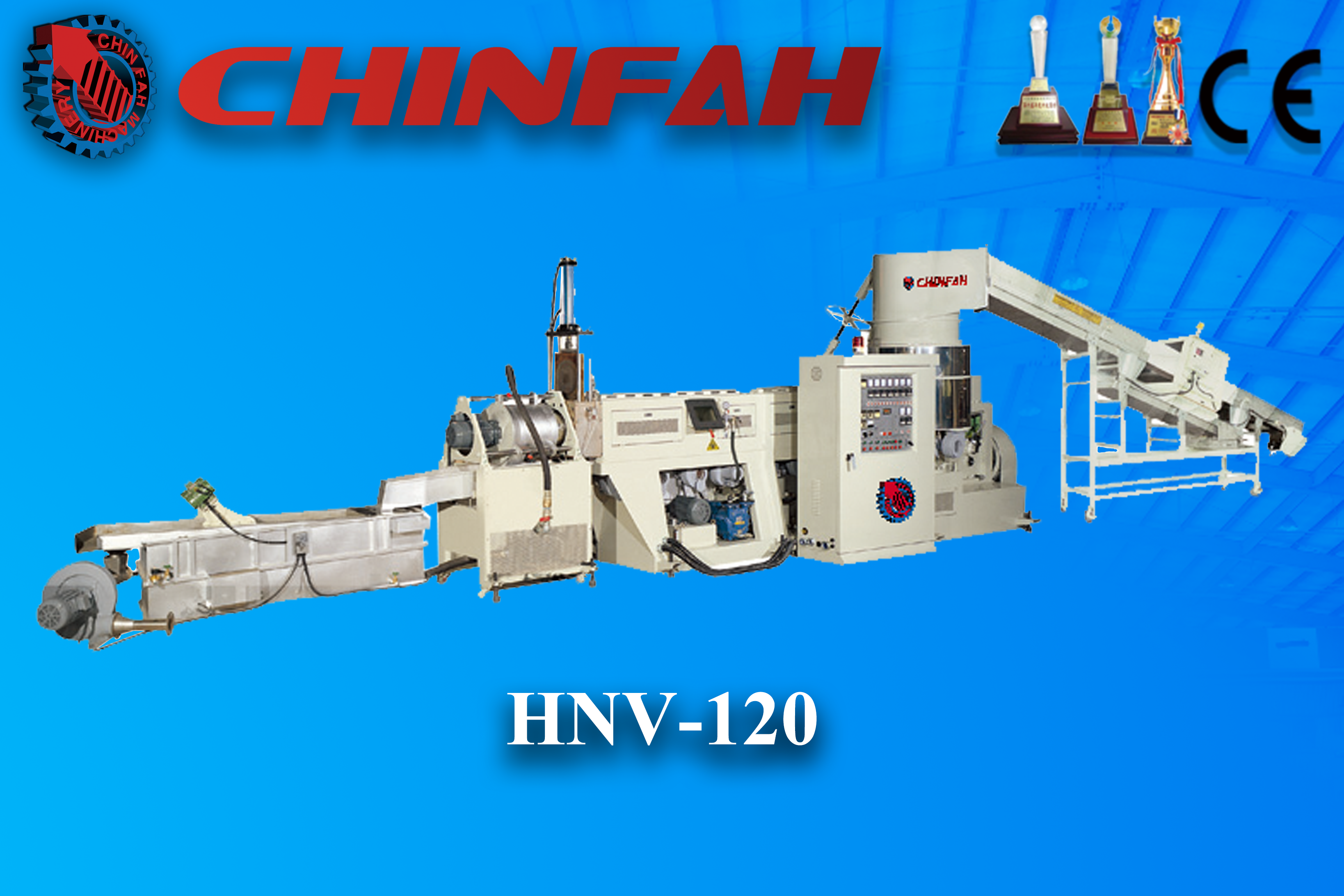

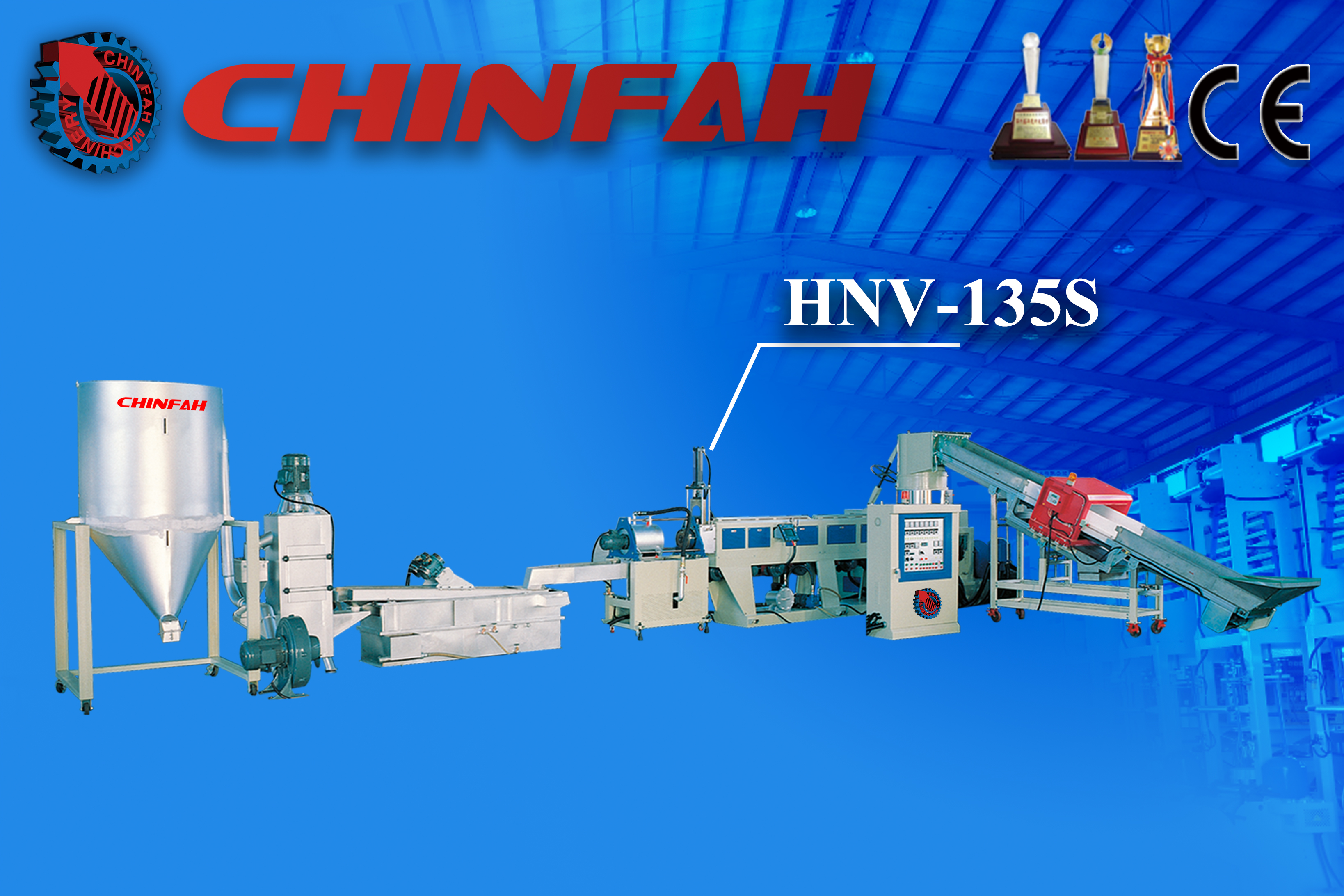

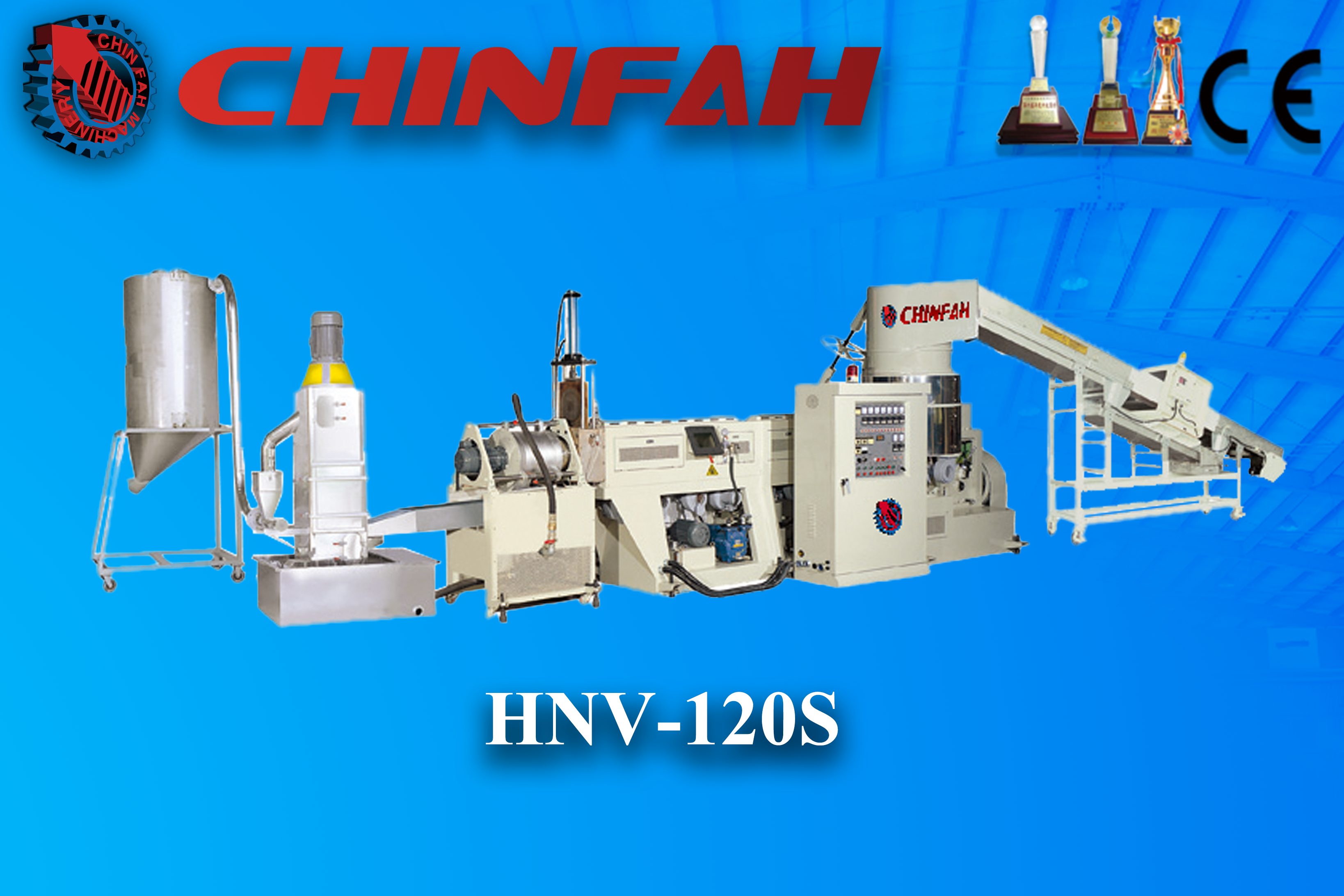

HNV-Series in action
Talk to our engineers
Send your production requirements and we'll follow up with a tailored recommendation.
