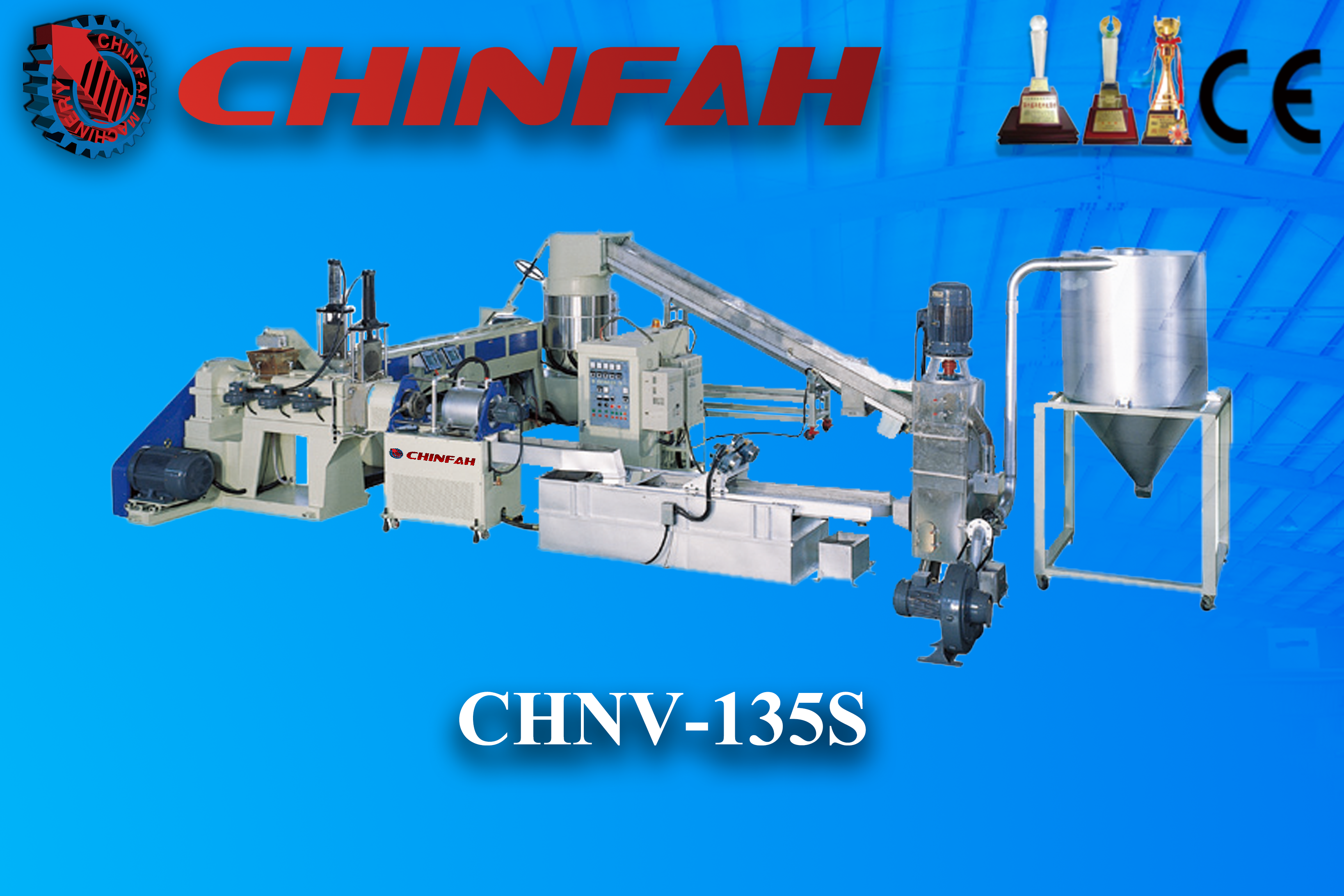

CHNV-Series Two-Stage 3-in-1 Recycling Machine
Conveyor, shredding drum, extruder and pelletizer in one line — turning HDPE, LDPE, LLDPE and PP film waste into bean-type pellets.
Build your inquiry
Fill this in and we'll turn it into a ready-to-send message.
Simple in design. Flexible in operation.
The recycling processes of Repro-Flex adapt to your waste stream — from raw material form and contamination level to your target output.
Where recycled pellets go next
Our customized machines are ideal for these applications.
Agricultural Film Recycling
Post-Industrial Plastic Scraps
General-Purpose Waste Recycling
Food Packaging Bag Production
Reusable Shopping Bags
Plastic Sheet Extrusion
Engineered piece by piece
- 3-in-1 design: conveyor + shredding drum + extruder + pelletizer
- Runs HDPE, LDPE, LLDPE and PP
- Perfect for clean or washed film waste — produces high-quality bean-type pellets
- Die face cutting system
- Easy operation, saves time and labor cost
Automatic film feeding
Feed rate is controlled via shredding motor amperage detection.
Energy-saving shredding drum
Up to 40% energy savings versus a conventional shredder.
Water cooling + vibration screening
Chopping, homogenizing, pre-heating and moisture control keep pellet quality consistent.
Optional equipment
Compare models
| Spec | YF-CHNV-100 | YF-CHNV-135 |
|---|---|---|
| Suitable resin | HDPE / LDPE / LLDPE / PP | |
| Max. output | 200–300 kg/hr | 400–600 kg/hr |
| Main product | Bean type pellets | |
| Cutting type | Die face cutting | |
| Screw diameter | 100mm | 135mm |
All specifications and images are for reference only. Contact CHINFAH to confirm the exact configuration for your line.
CHNV-Series in action
Talk to our engineers
Send your production requirements and we'll follow up with a tailored recommendation.
