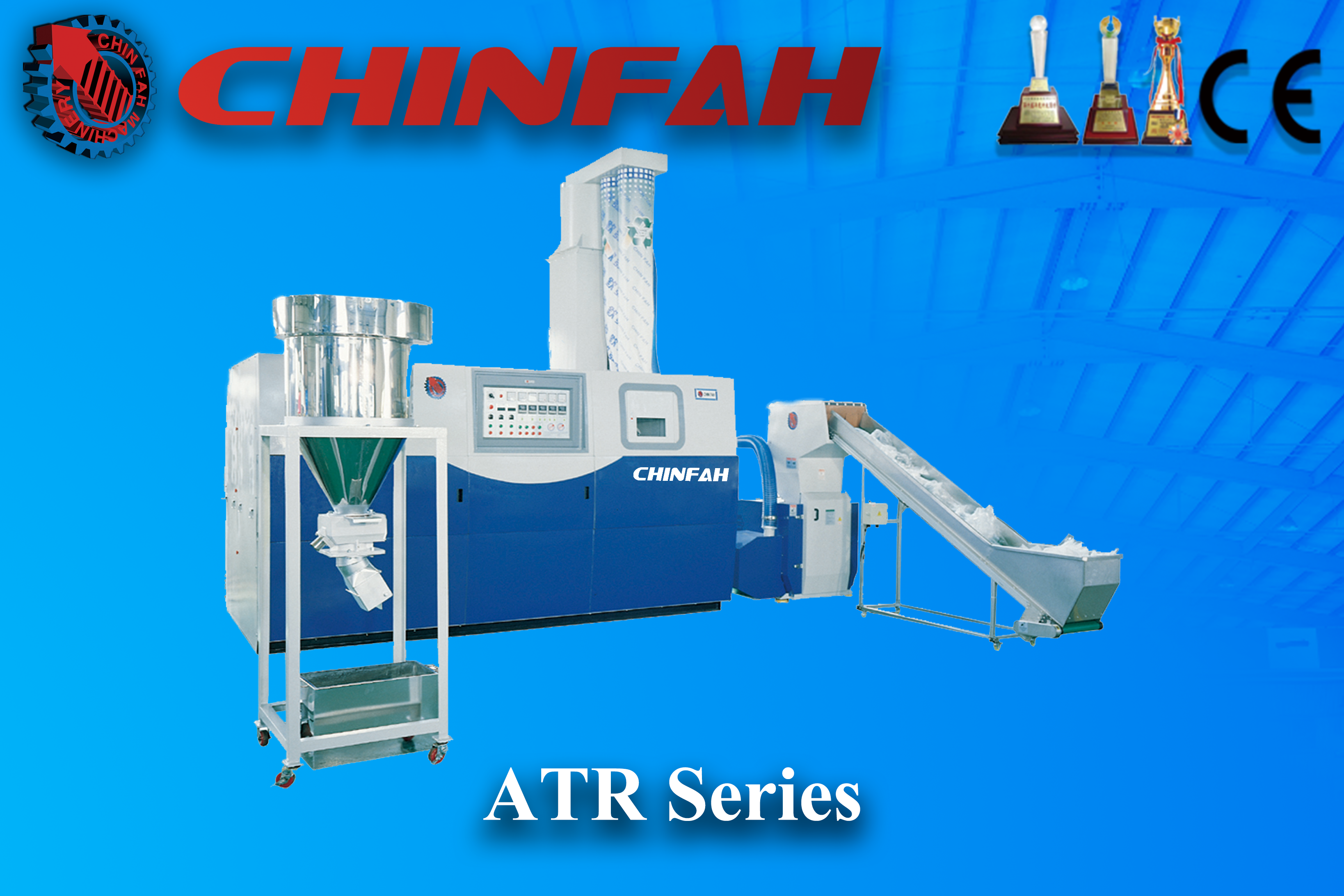

ATR Series Compact 3-in-1 Recycling Machine
YF-ATR-75 — a compact, CE-certified recycling line sized for small factories processing clean HDPE, LDPE and LLDPE film waste.
Build your inquiry
Fill this in and we'll turn it into a ready-to-send message.
Certified, compact, and quiet
Built for small factories that need a reliable, low-noise recycling line without a large footprint or power bill.
CE certified, award-winning
Certified under the CE Machinery Directive since 1999, and awarded Second Prize at TAIPEIPLAS 2008 for plastic extrusion machinery.
3-in-1 feeding system
Conveyor, crusher and waste storage tank in one line — saves labor and boosts efficiency.
Air-cooled & water-saving
No water cooling system to maintain — easy to operate, low noise, compact design.
Where recycled pellets go next
Our customized machines are ideal for these applications.
Agricultural Film Recycling
Post-Industrial Plastic Scraps
General-Purpose Waste Recycling
Food Packaging Bag Production
Reusable Shopping Bags
Plastic Sheet Extrusion
Engineered piece by piece
Crusher
Shreds plastic into small pieces and sends them to the storage tank via a built-in blower.
Conveyor
Automatically feeds plastic into the crusher, reducing labor costs.
Storage tank
Holds shredded film, fed by screw conveyor into the cyclone hopper.
Screw + inverter
Delivers material from tank to hopper; the extruder only starts when full — power-saving.
Forced feeding device
Assists plastic feeding into the extruder for smooth, consistent operation.
Venting extruder
Suitable for inked, foamed and wet plastic waste — includes a vacuum pump for venting.
Technical data
| Model | YF-ATR-75 |
| Raw materials | HDPE / LDPE / LLDPE |
| Cooling type | Air-cooling |
| Max. output | 40–60 kg/hr |
| Die head type | Die face cutting |
| Product type | Bean type pellets |
| Screw diameter | 75mm |
All specifications and images are for reference only. Contact CHINFAH to confirm the exact configuration for your line.
ATR Series in action
Talk to our engineers
Send your production requirements and we'll follow up with a tailored recommendation.
