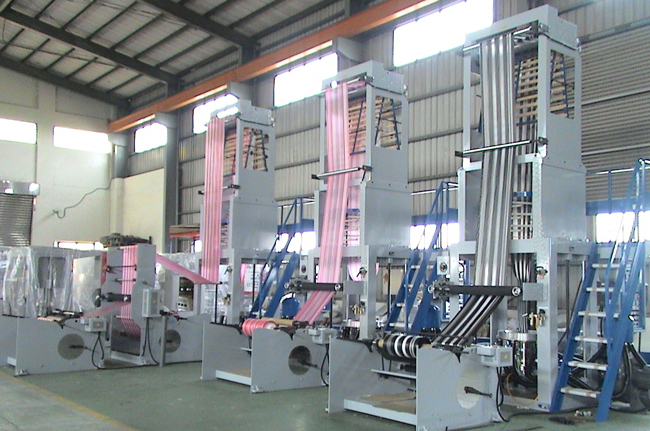

TC Series Blown Film Machine
Simple in Design. Flexible in Operation
Recycling Processes of Repro-Flex
.png)
Our state-of-the-art machines are designed to be user-friendly and efficient.
We offer flexible solutions that adapt to your production needs.
Join us in making sustainable choices for a better future.
Learn MoreApplications
Our customized machines are ideal for various applications:
- Agricultural film recycling
- Post-industrial plastic scraps
- General-purpose waste recycling
- Plastic bag manufacturing for food packaging
- Reusable shopping bags production
- Extrusion and production of plastic sheets
Specifications

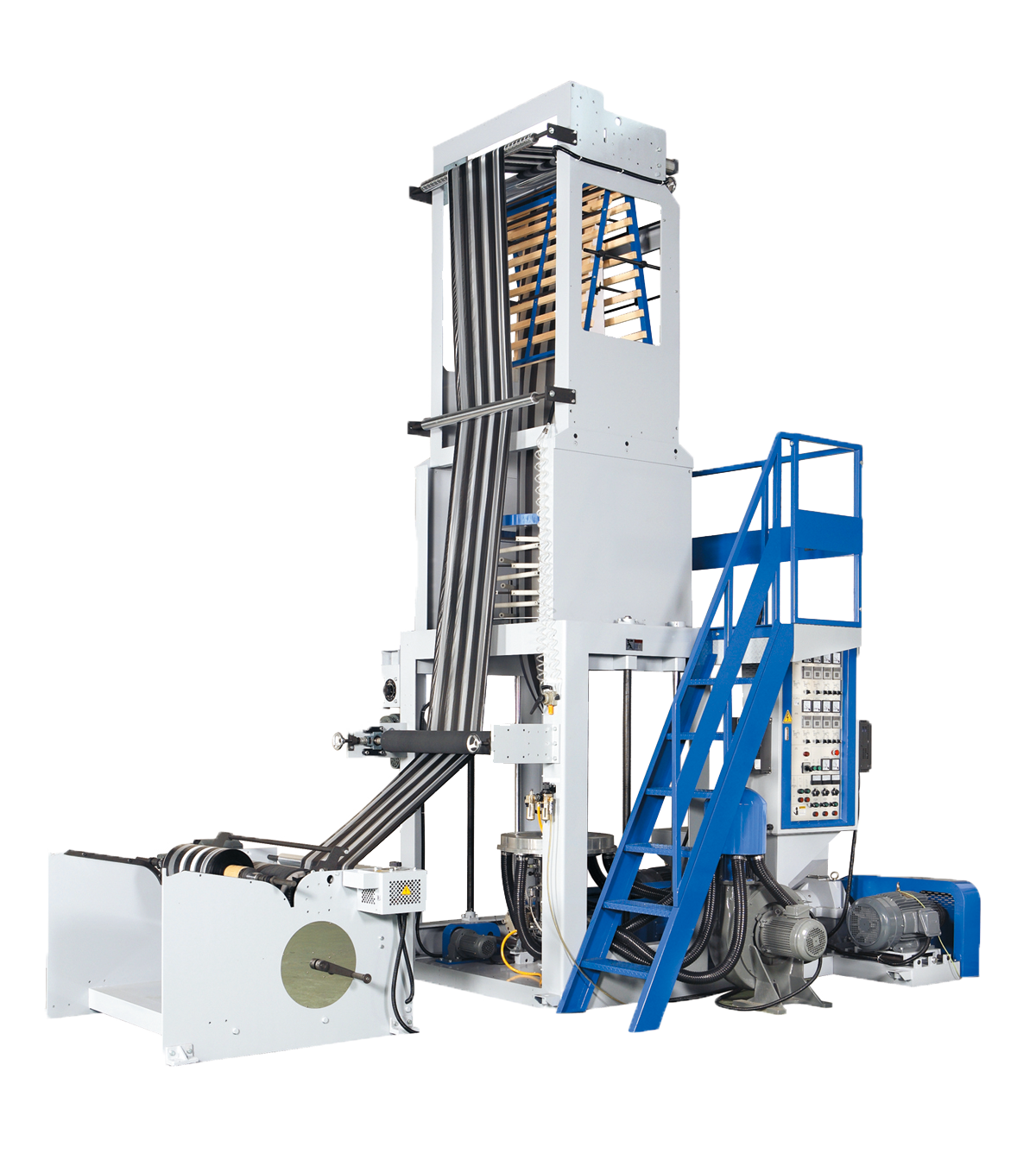

Double Color Blown Film Machine – YF-TC-40 & YF-TC-45
Product Description
- Extruder: Low base type with grinded gear box.
- Excellent die head design provides stable pressure and smooth, high-capacity flow.

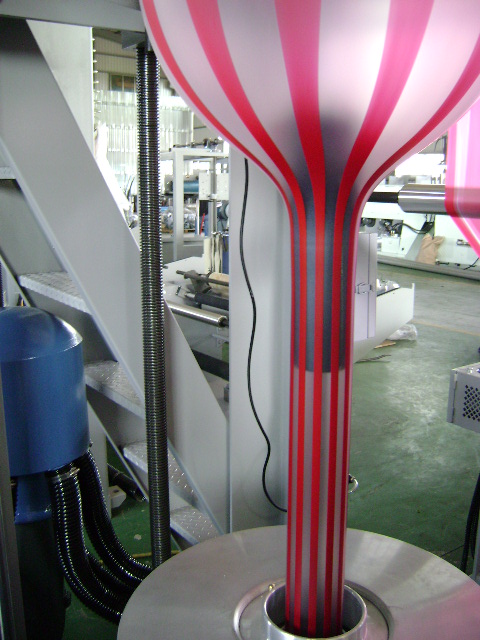

- Special air ring ensures proper cooling and film stability.

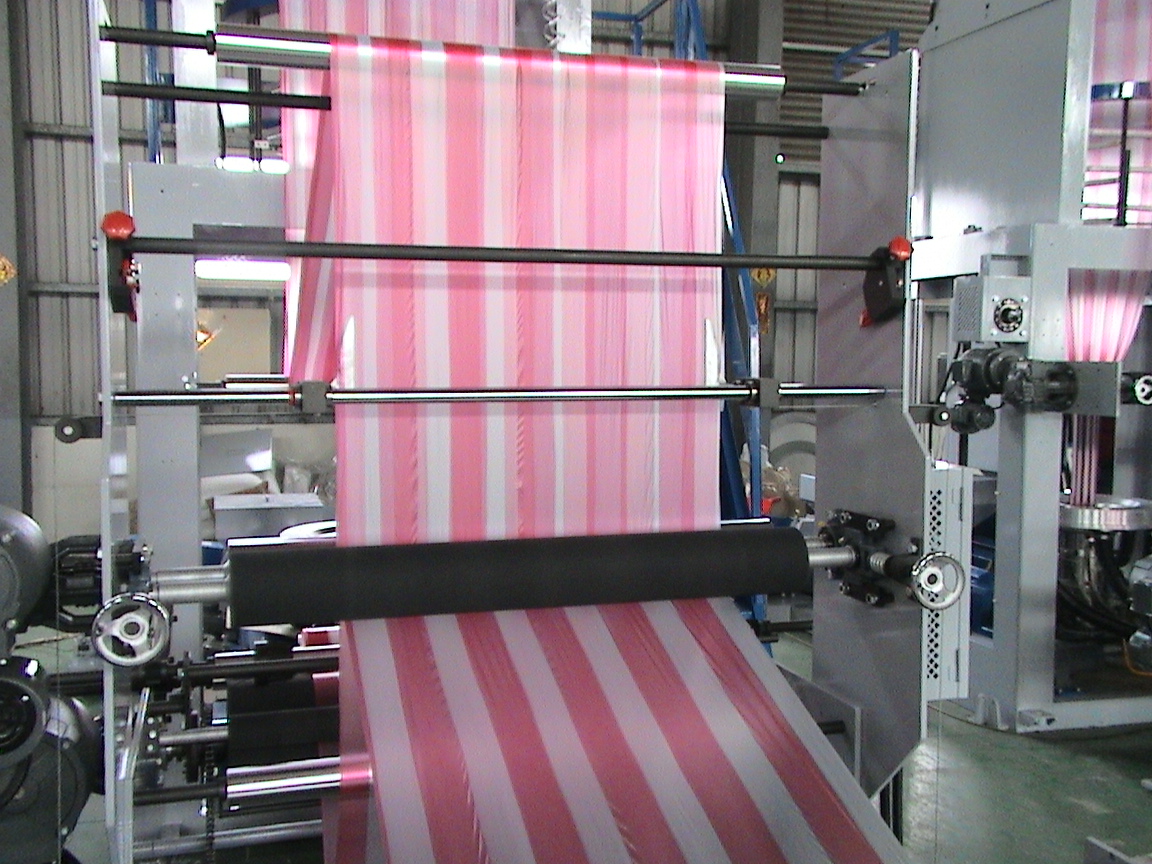

- Take-up unit with adjustable height tower and pneumatic pinch roller.

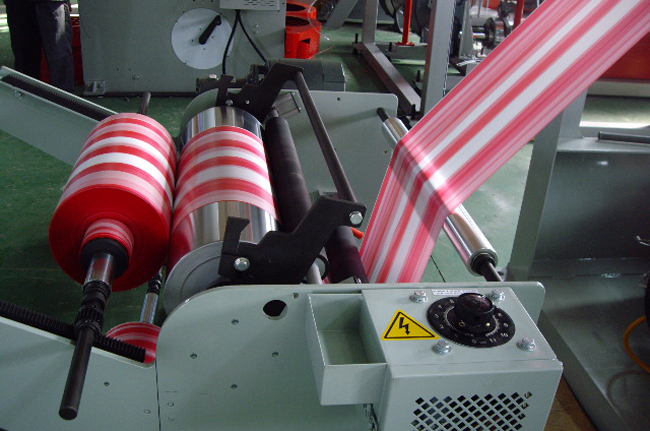

- Winder with enlarged winding diameter and adjustable gear rail for compact, even winding.
Optional Equipment
- Auto loader
- Film width controller
- Meter counter
- Surface static treater (corona)
- Embossing roller
- Air shaft
- Back-to-back (double) winder
- Rotary device
Note: All specifications and pictures above are for reference only.
If you need more information, please feel free to contact us.
| Model | YF-TC-40 | YF-TC-45 |
|---|---|---|
| Production | Double Color Inflation Tubular Film | |
| Film Thickness | HDPE: 0.02–0.20 MM | |
| Max. Film Width | 550 MM | 900 MM |
| Max. Extrusion Output | 45–60 KG/HR | 60–80 KG/HR |
| Type of Extrusion | Low Base Type | |
| Screw Diameter | 40 mm | 45 mm |
| Roller Width | 650 mm | 1000 mm |
