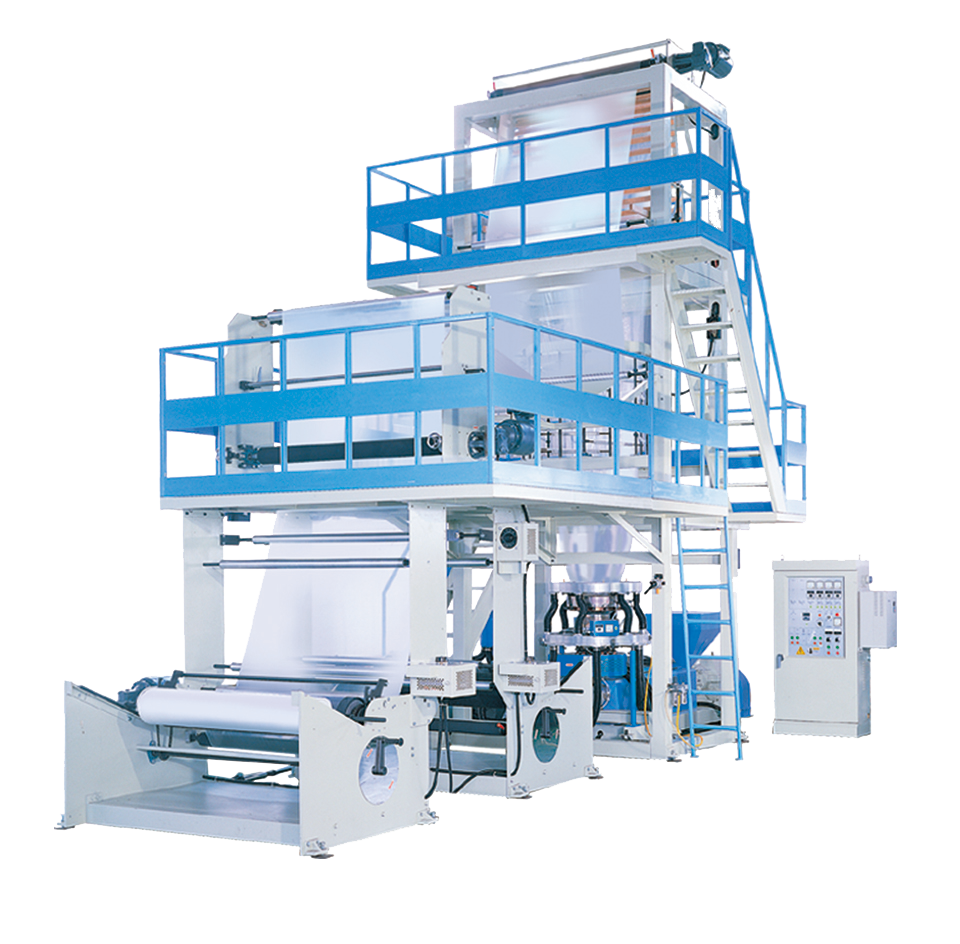

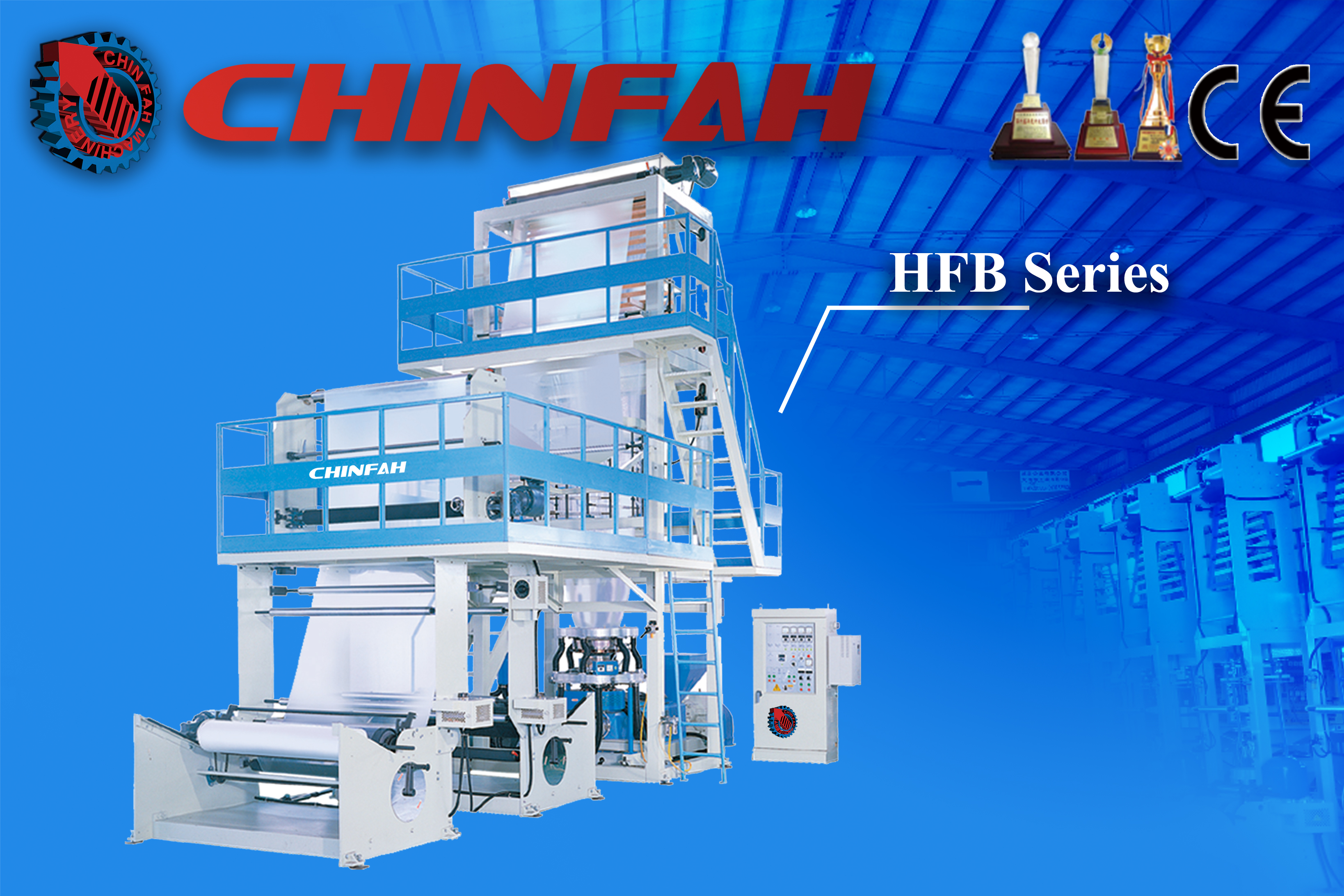

High-Speed Blown Film Machine HFB-Series
Simple in Design. Flexible in Operation
Recycling Processes of Repro-Flex
Our state-of-the-art machines are designed to be user-friendly and efficient.
We offer flexible solutions that adapt to your production needs.
Join us in making sustainable choices for a better future.
Learn MoreApplications
Our customized machines are ideal for various applications:
- Agricultural film recycling
- Post-industrial plastic scraps
- General-purpose waste recycling
- Plastic bag manufacturing for food packaging
- Reusable shopping bags production
- Extrusion and production of plastic sheets
Specifications
Our customized machines are ideal for various applications:
Product Specifications
- Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.
- Take up unit: With adjustable height take up tower and pneumatic pinch roller device.

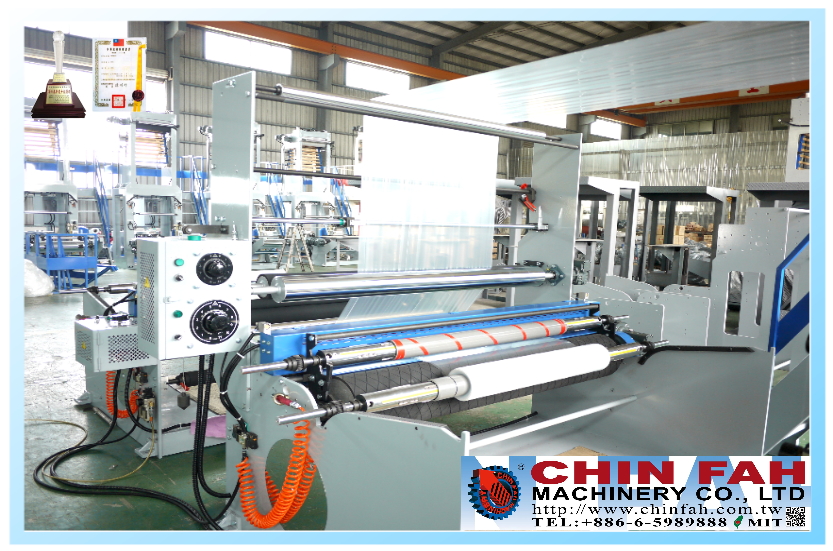

- Surface Winder: Special design of winder winding diameter is increased, equipped with adjustable gear rail for more compact winding, more even, no offset, and easy to operate.
Optional Equipment
- Auto loader
- Film width controller
- Meter counter
- Surface static treater (corona)
- Embossing roller
- Air shaft
- Back to back (double) winder
- Rotary device
| Model | YF-HFB-55 | YF-HFB-65 | YF-HFB-85 | YF-HFB-100 |
|---|---|---|---|---|
| Production | HDPE/LDPE/LLDPE Inflation Tubular Film | |||
| Film Thickness | HDPE: 0.008-0.10 MM | LDPE/LLDPE: 0.01-0.20 MM | |||
| Film Width | 1100MM | 1400MM | 2000MM | 2800MM |
| Max. Extrusion Output | 110 KG/HR | 130 KG/HR | 200 KG/HR | 300 KG/HR |
| Type of Extruder | Low Base Type | |||
| Screw Diameter | 55mm | 65mm | 85mm | 100mm |
| Roller Width | 1200mm | 1500mm | 2200mm | 3000mm |
