HB-Series Standard Blown Film Machine
Simple in Design. Flexible in Operation
Recycling Processes of Repro-Flex
Our state-of-the-art machines are designed to be user-friendly and efficient.
We offer flexible solutions that adapt to your production needs.
Join us in making sustainable choices for a better future.
Learn MoreApplications
Our customized machines are ideal for various applications:
- Agricultural film recycling
- Post-industrial plastic scraps
- General-purpose waste recycling
- Plastic bag manufacturing for food packaging
- Reusable shopping bags production
- Extrusion and production of plastic sheets
Specifications
Our customized machines are ideal for various applications:
Product Description

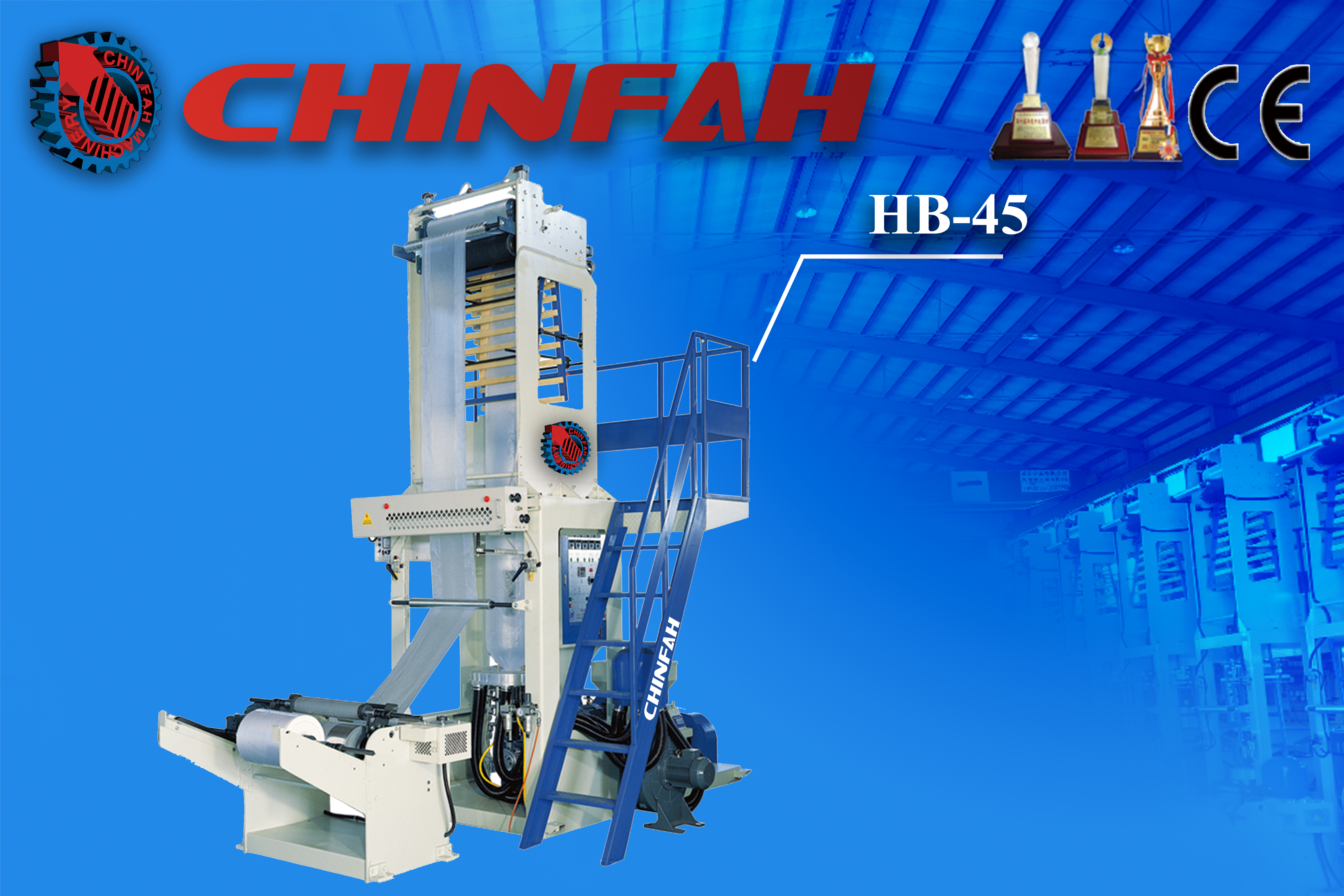

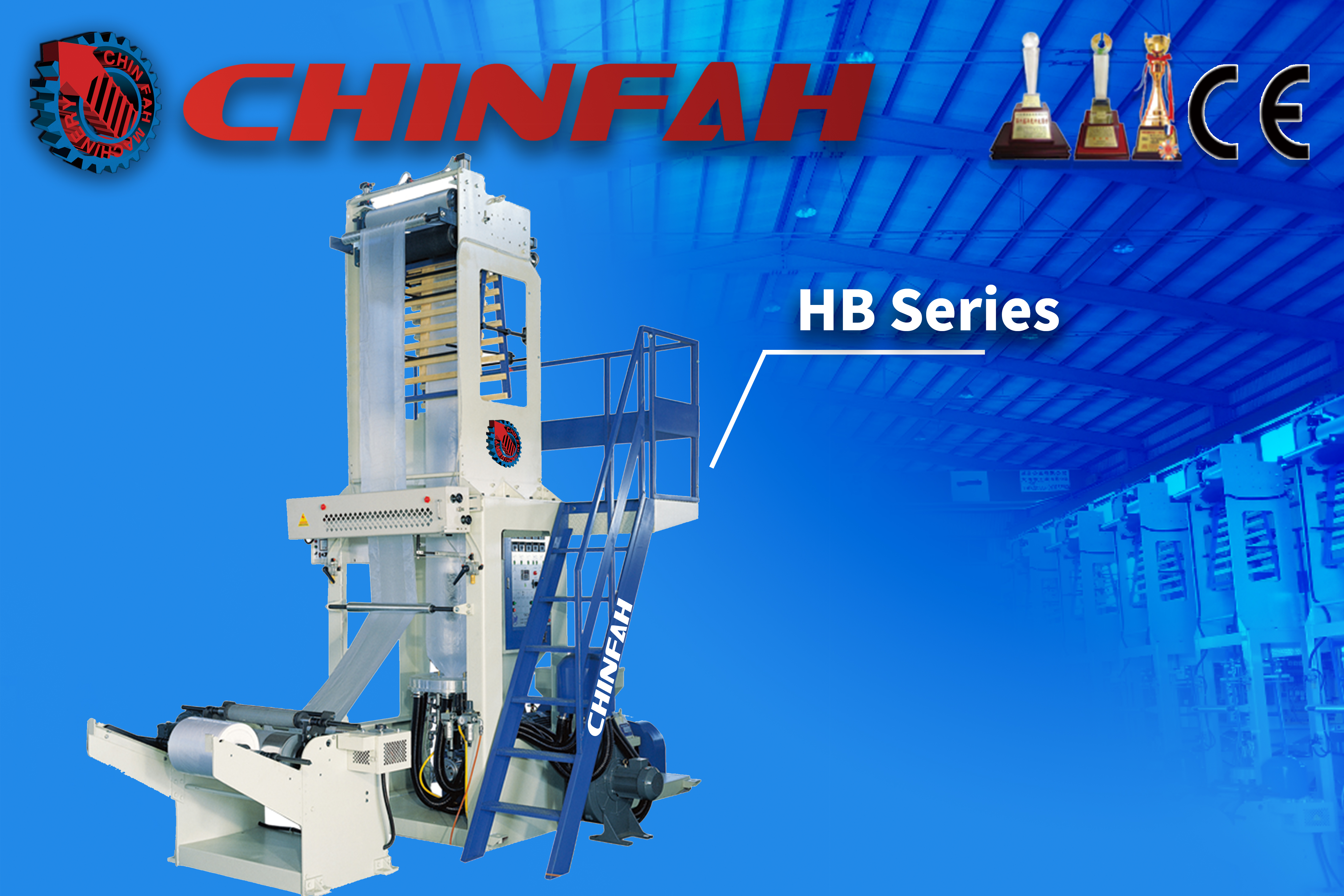

CHIN FAH's professional blown film machine - HB Series
- HDPE/LDPE film.
- Screw and barrel have special surface treatment, wear-resisting, perfect mixing effect, with high capacity.
- Screw range from 45mm-60mm.
- Gear face ground has been processed by computer digital controlled and inspected.
- Elevator up and down type.
- Complete function and outstanding performance, high product quality.
Product Specifications
- Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.
- Take up unit: With adjustable height take up tower and pneumatic pinch roller device.
- Surface Winder: Special design of winder winding diameter is increased, equipped with adjustable gear rail for more compact winding, more even, no offset, and easy to operate.
Optional Equipment
- Auto loader
- Film width controller
- Meter counter
- Surface static treater (corona)
- Embossing roller
- Air shaft
- Back to back (double) winder
| Model | YF-HB-40 | YF-HB-45 | YF-HB-52 | YF-HB-55 |
|---|---|---|---|---|
| Production | HDPE/LDPE/LLDPE Inflation Tubular Film | |||
| Film Thickness | HDPE: 0.008-0.10 MM | LDPE/LLDPE: 0.01-0.20 MM | |||
| Film Width | 400MM | 650MM | 800MM | 900MM |
| Max. Extrusion Output | 35 KG/HR | 55 KG/HR | 65 KG/HR | 75 KG/HR |
| Type of Extruder | Low Base Type | |||
| Screw Diameter | 40mm | 45mm | 52mm | 55mm |
| Roller Width | 500mm | 750mm | 850mm | 1000mm |
