Double colors with double die head, CTCHB Series
Simple in Design. Flexible in Operation
Recycling Processes of Repro-Flex
Our state-of-the-art machines are designed to be user-friendly and efficient.
We offer flexible solutions that adapt to your production needs.
Join us in making sustainable choices for a better future.
Learn MoreApplications
Our customized machines are ideal for various applications:
- Agricultural film recycling
- Post-industrial plastic scraps
- General-purpose waste recycling
- Plastic bag manufacturing for food packaging
- Reusable shopping bags production
- Extrusion and production of plastic sheets
Specifications

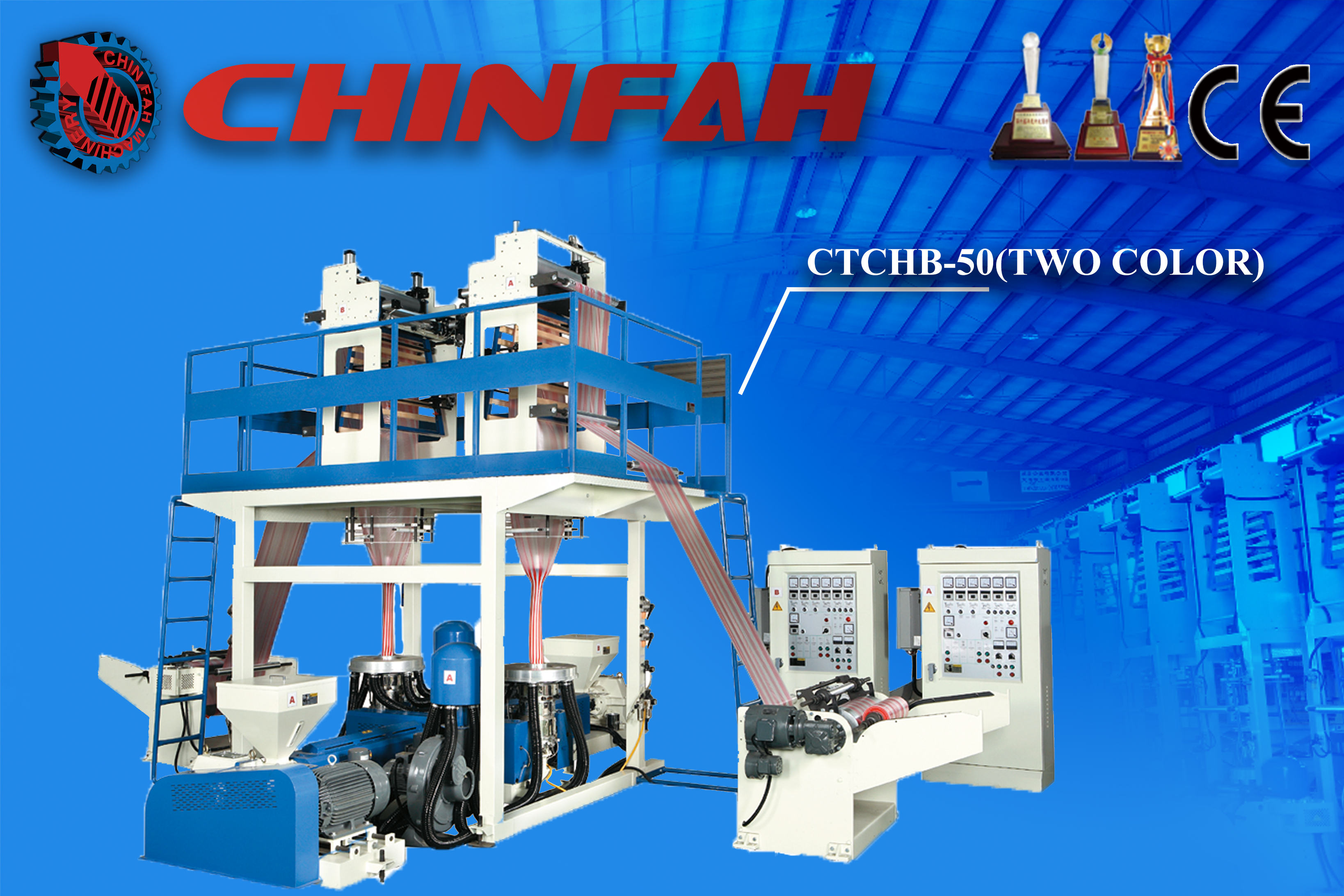

High-efficiency 2-color blown film machine with double die & double extruder
Product Description
- CHIN FAH's tubular film making machine, CTCHB Series, 100% made in Taiwan with professional design.
- CHB-Series: Single color, double die, two extruder film machine.
- CTCHB-Series: Double color, double die, two extruder film machine.
- Clear two color strips and high-quality film production.
- High-efficiency 2-in-1 design: combines two machines into one to save 30% space, 50% power, and 20% budget.
Optional Equipment
- Auto loader
- Film width controller
- Meter counter
- Surface static treater (corona)
- Embossing roller
- Air shaft
Note: All specifications and pictures above are for reference only.
If you need more information, please feel free to contact us.
| Model | YF-CTCHB-50 (TWO COLOR) |
|---|---|
| Production | HDPE Inflation Tubular Film |
| Film Thickness | 0.02–0.20 MM |
| Film Width | 550 MM |
| Extrusion Output | 75–80 KG/HR |
| Screw Diameter | 50 mm |
| Roller Width | 650 mm |
| Extruder Type | Low base type with grinded gear box |
| Die Head | Excellent pressure & smooth high capacity |
| Take-up Unit | Adjustable height with pneumatic pinch roller |
| Surface Winder | Compact, even winding with adjustable gear rail |
