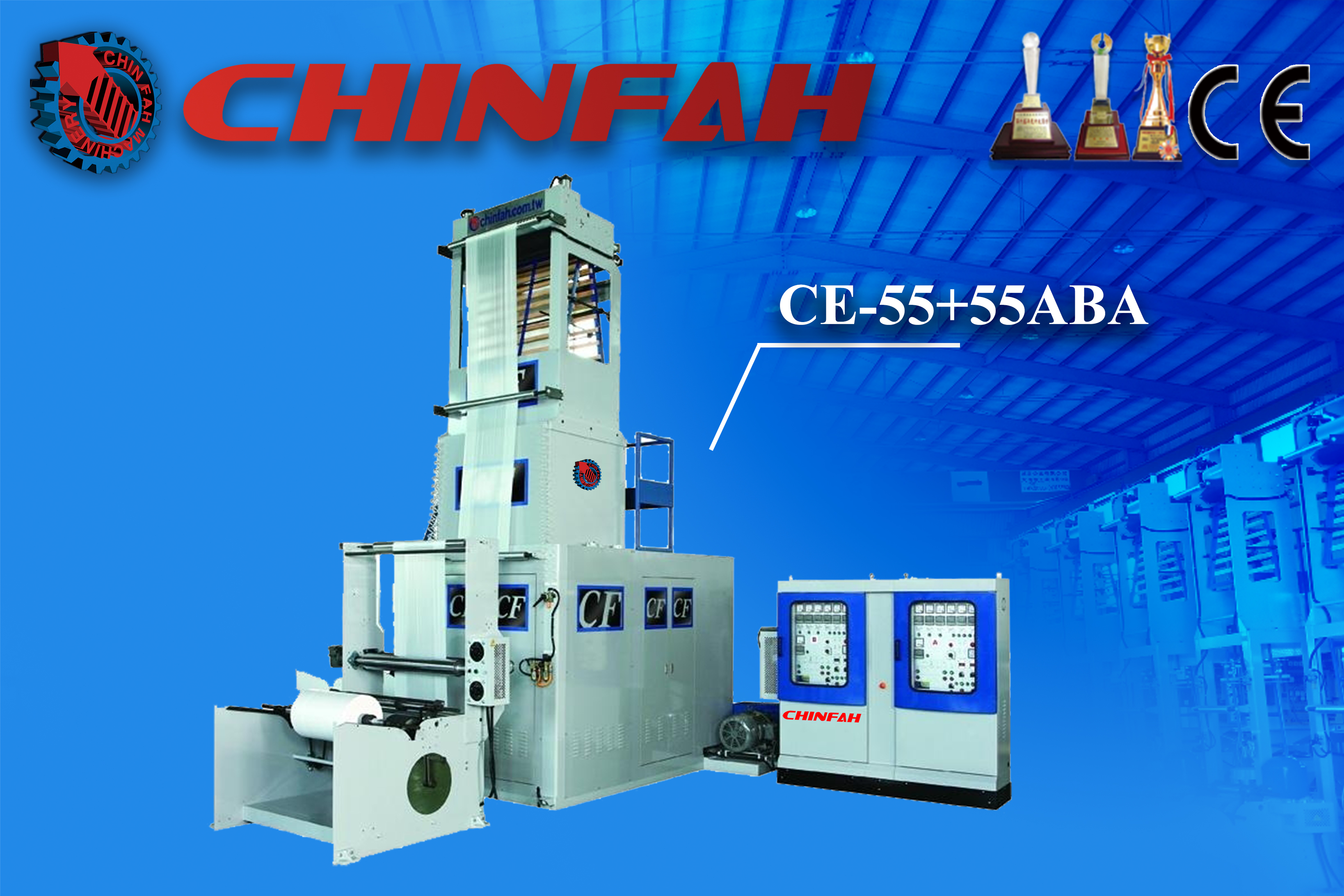

ABA Three Layers Blown Film Machine,YF-CE-55+55

Material

Output

Maximum Film Width

Thickness

micron

Layers

Here’s the information you entered:

Why Choose Us? Applications Specifications

Simple in Design. Flexible in Operation

Recycling Processes of Repro-Flex

Our state-of-the-art machines are designed to be user-friendly and efficient.

We offer flexible solutions that adapt to your production needs.

Join us in making sustainable choices for a better future.

Learn More

Our customized machines are ideal for various applications:

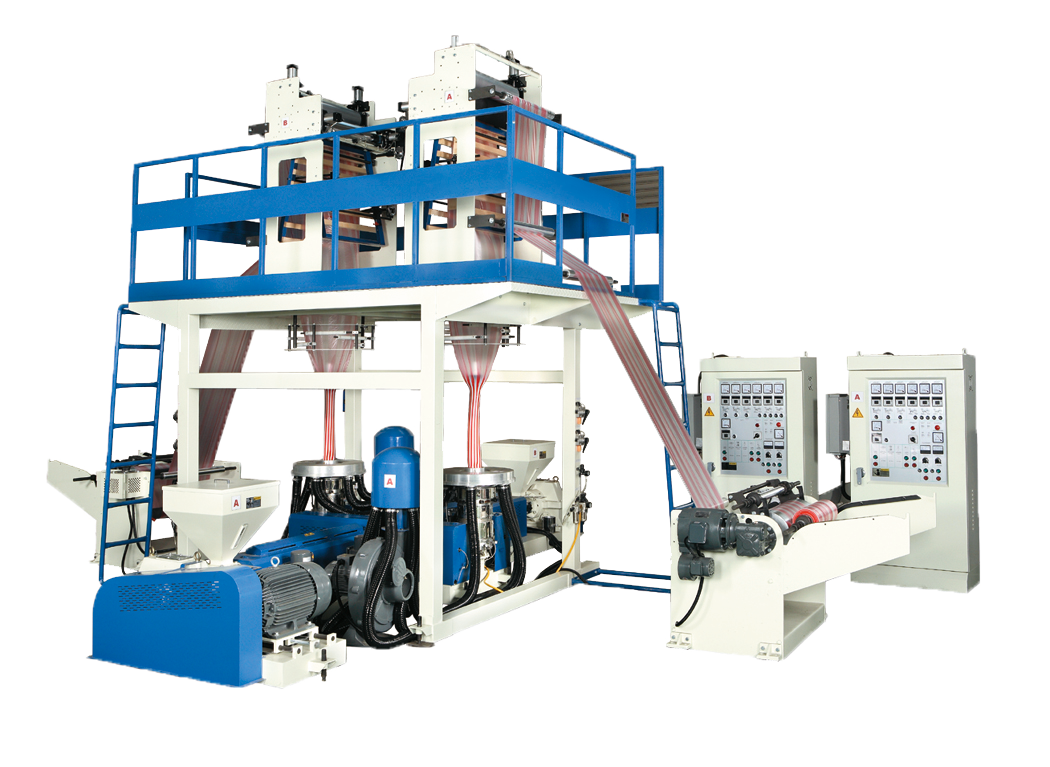

High-efficiency 3-layer blown film machine with A-B-A design

CHIN FAH provides a variety of high-quality plastic extrusion machines, with the ABA type being the most popular.
Three-layer A-B-A design allows for high-quality film production at a lower cost.
Use new material to wrap recycled material for cost-efficiency.
Save 50%–70% material cost with this advanced design.
Saves 50% power cost with SCR power-saving system.
Can blow two-color bags with two or three layers, all in a three-in-one machine design.
Space-saving, efficient design for your production line.

Note: All specifications and pictures above are for reference only.

If you need more information, please feel free to contact us.

Model	YF-CE-55+55 (THREE LAYERS A-B-A)
Production	HDPE/LDPE/LLDPE Inflation Tubular Film
Film Thickness	HDPE: 0.01–0.15MM, LDPE: 0.012–0.20MM
Film Width	900 MM
Max. Extrusion Output	80–140 KG/HR
Type of Extruder	Low Base Type
Screw Diameter	55+55 mm
Roller Width	1000 mm
