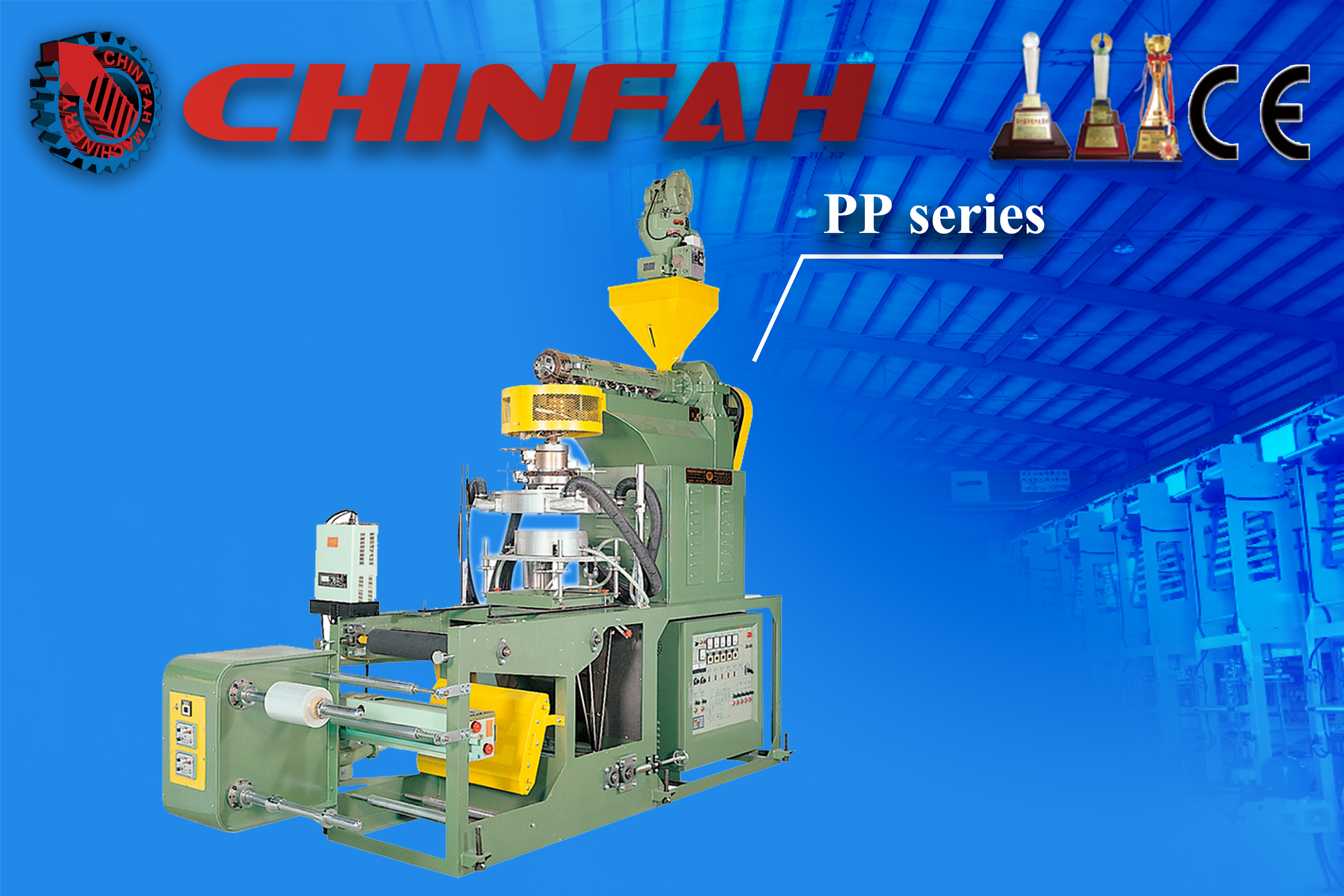

YF-PP Series Polypropylene Blown Film Machines
CHIN FAH's professional blown film machine The CHINFAH YF-PP Series produces polypropylene tubular film with four model sizes, 100–1000 mm film width and approximately 25–100 kg/h output.
Build your inquiry
Fill this in and we'll turn it into a ready-to-send message.
YF-PP Series for dependable production
The CHINFAH YF-PP Series produces polypropylene tubular film with four model sizes, 100–1000 mm film width and approximately 25–100 kg/h output. CHINFAH engineers each line in Tainan, Taiwan and can review your material, product dimensions and output target with you.
Designed for your product requirements
Share the materials you process, required dimensions, target output and finished product. Our team will help identify a suitable configuration.
YF-PP Series Technical Specifications
Compare the main specifications of the CHINFAH YF-PP Series polypropylene blown film machines. Different extruder sizes are available for different film widths and production capacities.
| Specification | YF-PP-45 | YF-PP-55 | YF-PP-65 | YF-PP-80 |
|---|---|---|---|---|
| Film Width | 100–450 mm | 300–600 mm | 400–700 mm | 500–1000 mm |
| Productivity | 25–35 kg/h | 30–50 kg/h | 45–65 kg/h | 80–100 kg/h |
| Screw Diameter | 45 mm | 55 mm | 65 mm | 80 mm |
| Pinch Roller Width | 500 mm | 750 mm | 915 mm | 1100 mm |
| Main Product | Polypropylene tubular film | |||
| Film Thickness | 0.02–0.06 mm | |||
| Extruder | Downward extrusion type | |||
| Winder | Manual two-shaft winder with two torque motors | |||
| Winding Speed | Adjustable according to production requirements | |||
| Electrical Components | International-standard electrical components | |||
Specifications may vary depending on material, film width, thickness, output requirements and final machine configuration. Contact CHINFAH to confirm the recommended machine and configuration for your production requirements.
Questions about this machine
Which models are included in the YF-PP Series?+

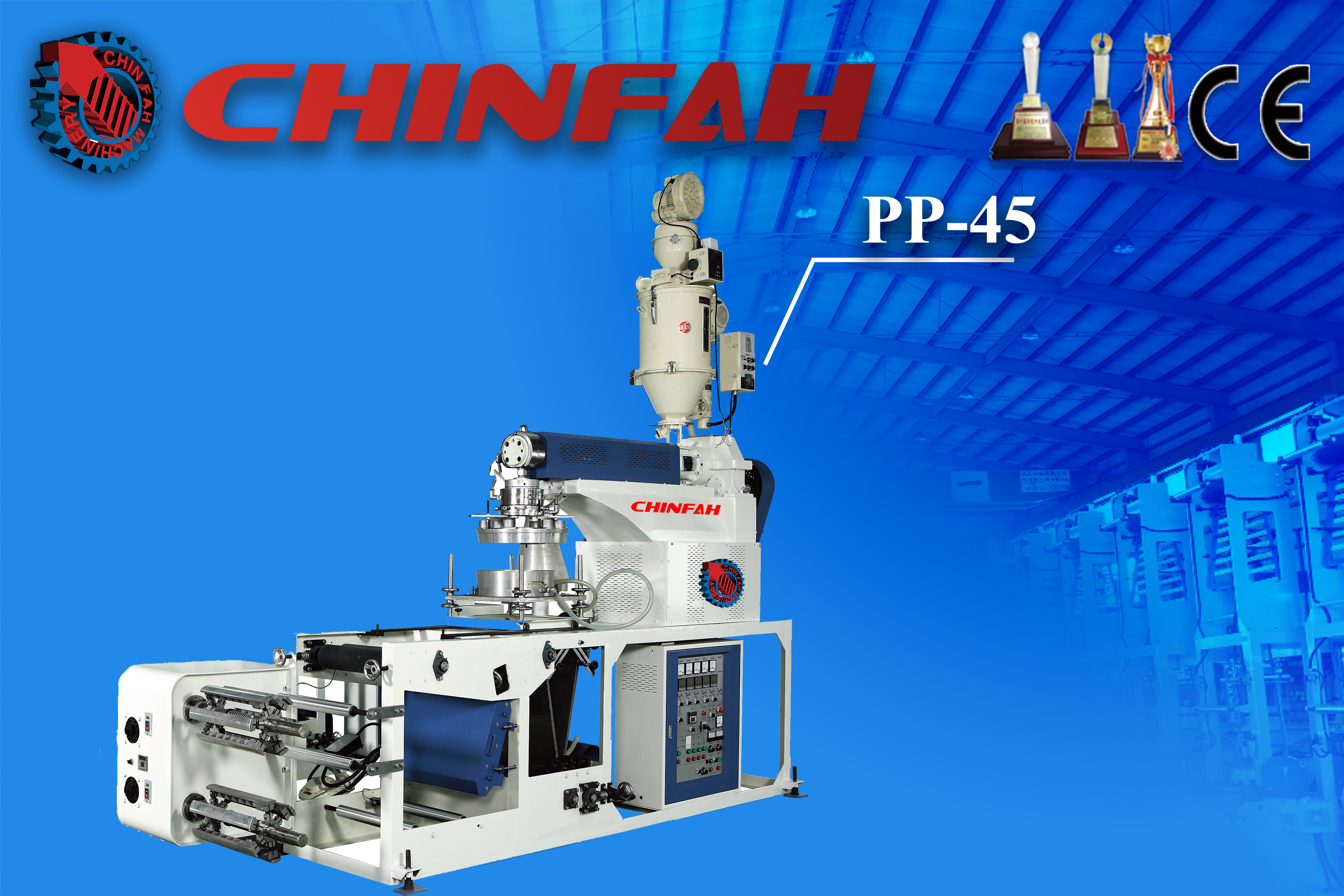

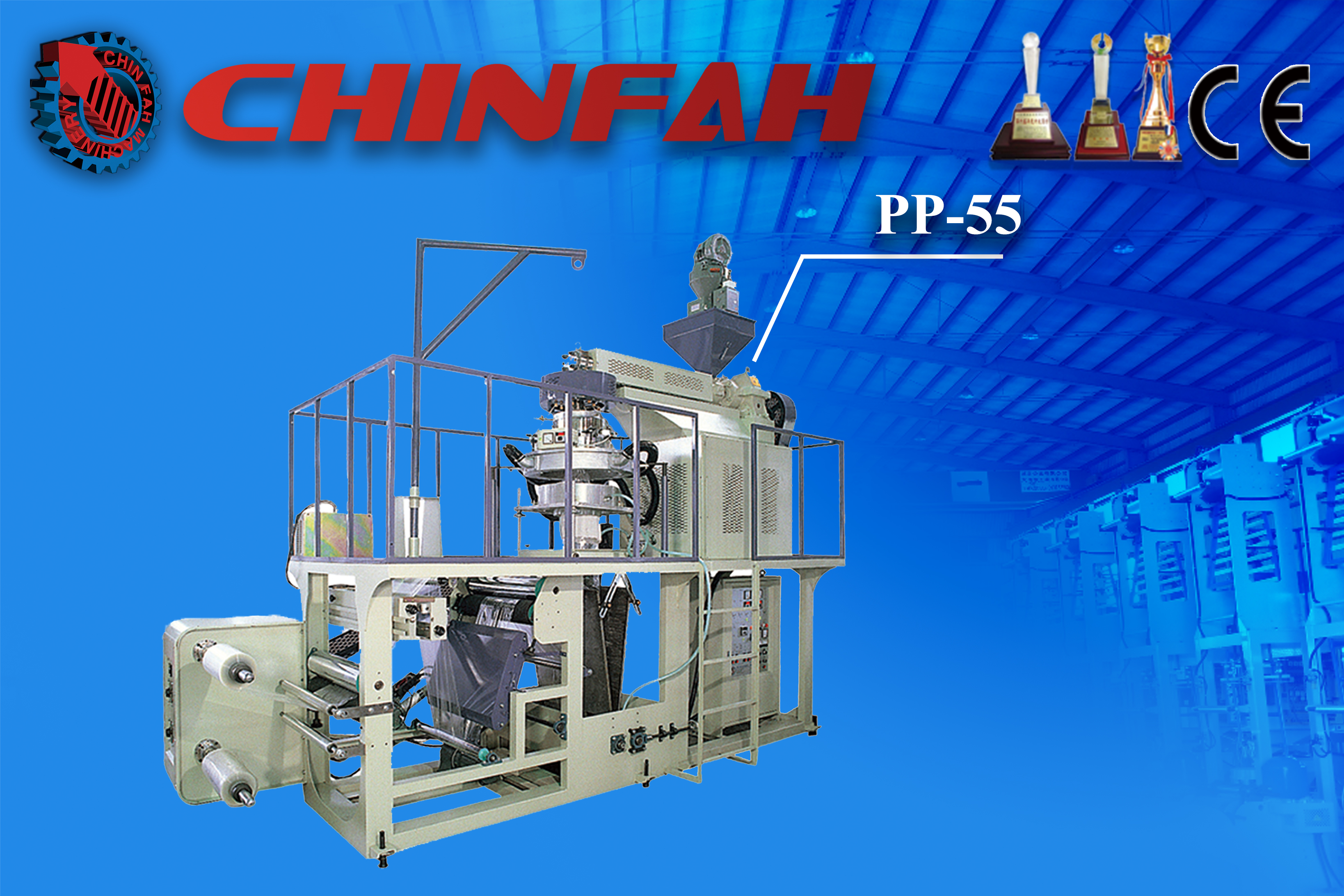

The series includes YF-PP-45, YF-PP-55, YF-PP-65 and YF-PP-80.
How do the PP models differ?+
The model range covers film widths from 100–1000 mm and listed output from 25–100 kg/h. See the specification table for each model.
Can CHINFAH recommend a model for my film?+
Enter your material, film width, thickness and target output in the configurator. The inquiry summary can be added to the contact form for review.
Talk to our engineers
Send your production requirements and we'll follow up with a tailored recommendation.
