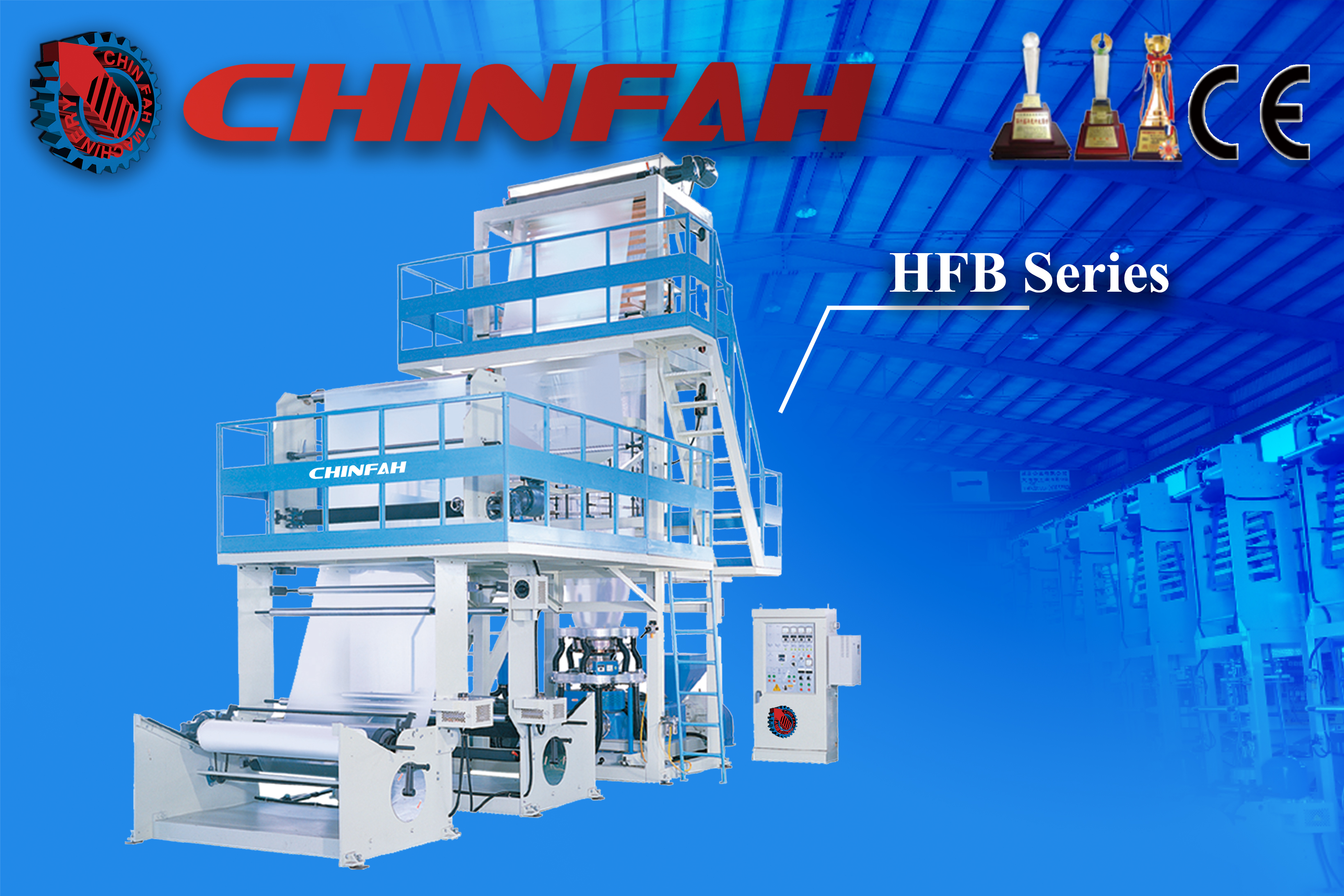

HFB-Series High-Speed Blown Film Machine
Four sizes, one high-speed platform — HFB-Series runs HDPE, LDPE and LLDPE film from 1100mm up to 2800mm width.
Build your inquiry
Fill this in and we'll turn it into a ready-to-send message.
One platform, four output sizes
From 1100mm to 2800mm film width, HFB-Series scales with your production line without changing machine philosophy.
Low base extruder
Ground gear box and precisely designed die head for smooth, high-capacity flow.
Adjustable take-up tower
Height-adjustable with a pneumatic pinch roller device.
Compact, even winding
Larger winding diameter with an adjustable gear rail — no offset, easy to operate.
What you can produce with HFB-Series
Agricultural Film
Table Covers / Sofra Rolls
Mattress Covering Film
Courier (HDL) Bags
Flat Film Rolls
Food Packaging & Shopping Bags
Engineered piece by piece
Extruder
Low base type, with ground gear box, excellent die head design for adequate pressure, smooth flow and high capacity, with a special air ring for proper cooling and stabilizing.
Take-up Unit
Adjustable-height take-up tower with a pneumatic pinch roller device.
Surface Winder
Increased winding diameter with an adjustable gear rail for compact, even winding without offset.
Optional equipment
Compare models
| Spec | YF-HFB-55 | YF-HFB-65 | YF-HFB-85 | YF-HFB-100 |
|---|---|---|---|---|
| Film width | 1100mm | 1400mm | 2000mm | 2800mm |
| Max. extrusion output | 110 kg/hr | 130 kg/hr | 200 kg/hr | 300 kg/hr |
| Screw diameter | 55mm | 65mm | 85mm | 100mm |
| Roller width | 1200mm | 1500mm | 2200mm | 3000mm |
| Film thickness | HDPE: 0.008–0.10mm | LDPE/LLDPE: 0.01–0.20mm | |||
| Production | HDPE / LDPE / LLDPE inflation tubular film | |||
| Extruder type | Low base type | |||
Contact CHINFAH to confirm the exact configuration for your line.
