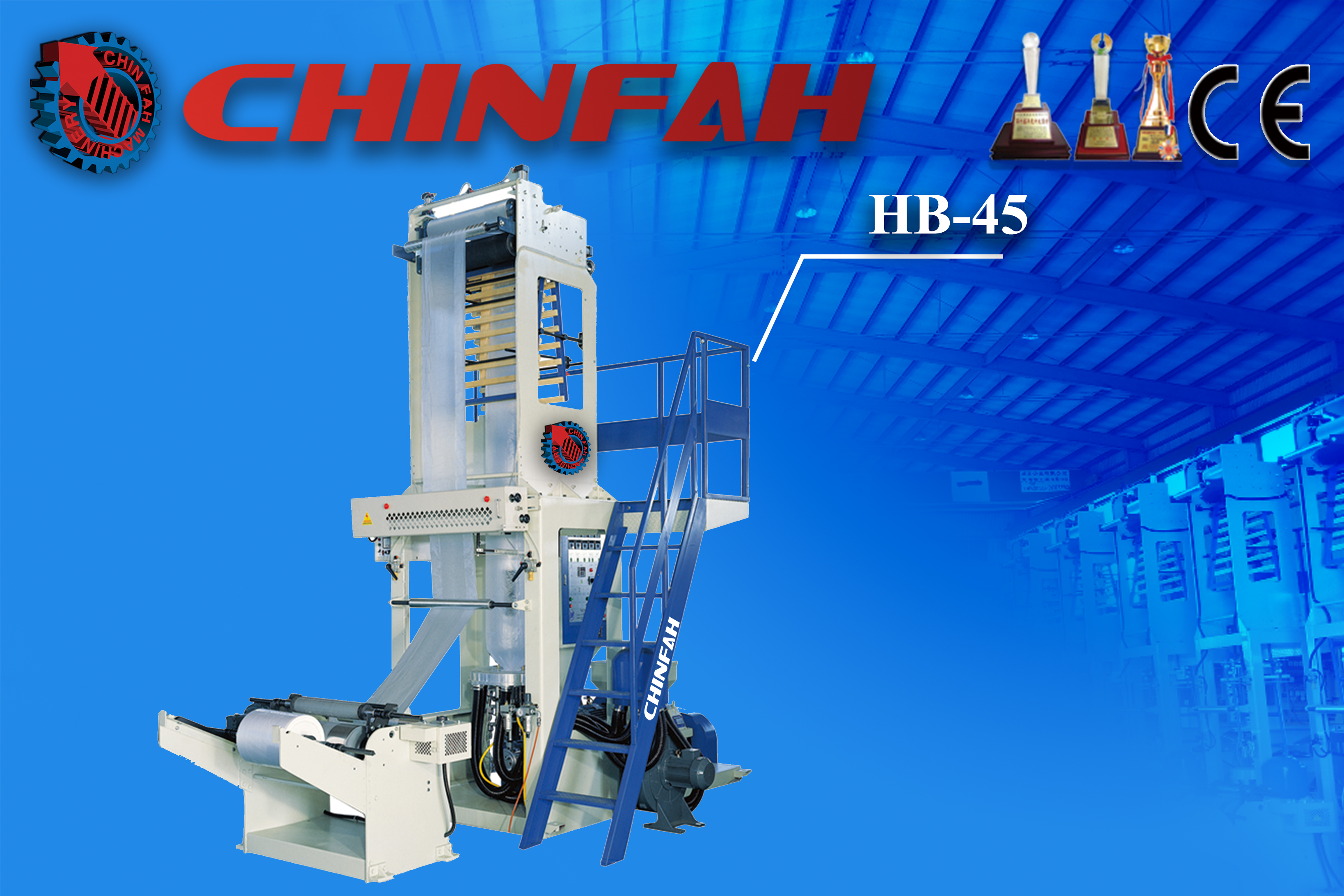

HB-Series Standard Blown Film Machine
CHIN FAH's professional blown film machine for HDPE, LDPE and LLDPE inflation tubular film — screw and barrel have a special surface treatment for wear resistance and a perfect mixing effect.
Build your inquiry
Fill this in and we'll turn it into a ready-to-send message.
Simple in design. Flexible in operation.
The HB-Series adapts to your production needs — from film width and layer structure to the resins you run — without adding complexity for your operators.
Built to run, not to babysit
- Gear face ground is computer digitally controlled and inspected
- Elevator up/down type take-up tower
- Special surface-treated screw and barrel for wear resistance and perfect mixing
What you can produce with HB-Series
Six film products this machine is built to run.
Agricultural Film
Table Covers / Sofra Rolls
Mattress Covering Film
Courier (HDL) Bags
Flat Film Rolls
Food Packaging & Shopping Bags
Engineered piece by piece
Extruder
Low base type, with ground gear box, precisely designed die head with adequate pressure, smooth high-capacity flow, and a special air ring for proper cooling and stabilizing.
Take-up Unit
Adjustable-height take-up tower with a pneumatic pinch roller device.
Surface Winder
Increased winding diameter with an adjustable gear rail for more compact, even winding without offset.
Optional equipment
Compare models
| Spec | YF-HB-40 | YF-HB-45 | YF-HB-52 | YF-HB-55 |
|---|---|---|---|---|
| Film width | 400mm | 650mm | 800mm | 900mm |
| Max. extrusion output | 35 kg/hr | 55 kg/hr | 65 kg/hr | 75 kg/hr |
| Screw diameter | 40mm | 45mm | 52mm | 55mm |
| Roller width | 500mm | 750mm | 850mm | 1000mm |
| Film thickness | HDPE: 0.008–0.10mm | LDPE/LLDPE: 0.01–0.20mm | |||
| Production | HDPE / LDPE / LLDPE inflation tubular film | |||
| Extruder type | Low base type | |||
Contact CHINFAH to confirm the exact configuration for your line.

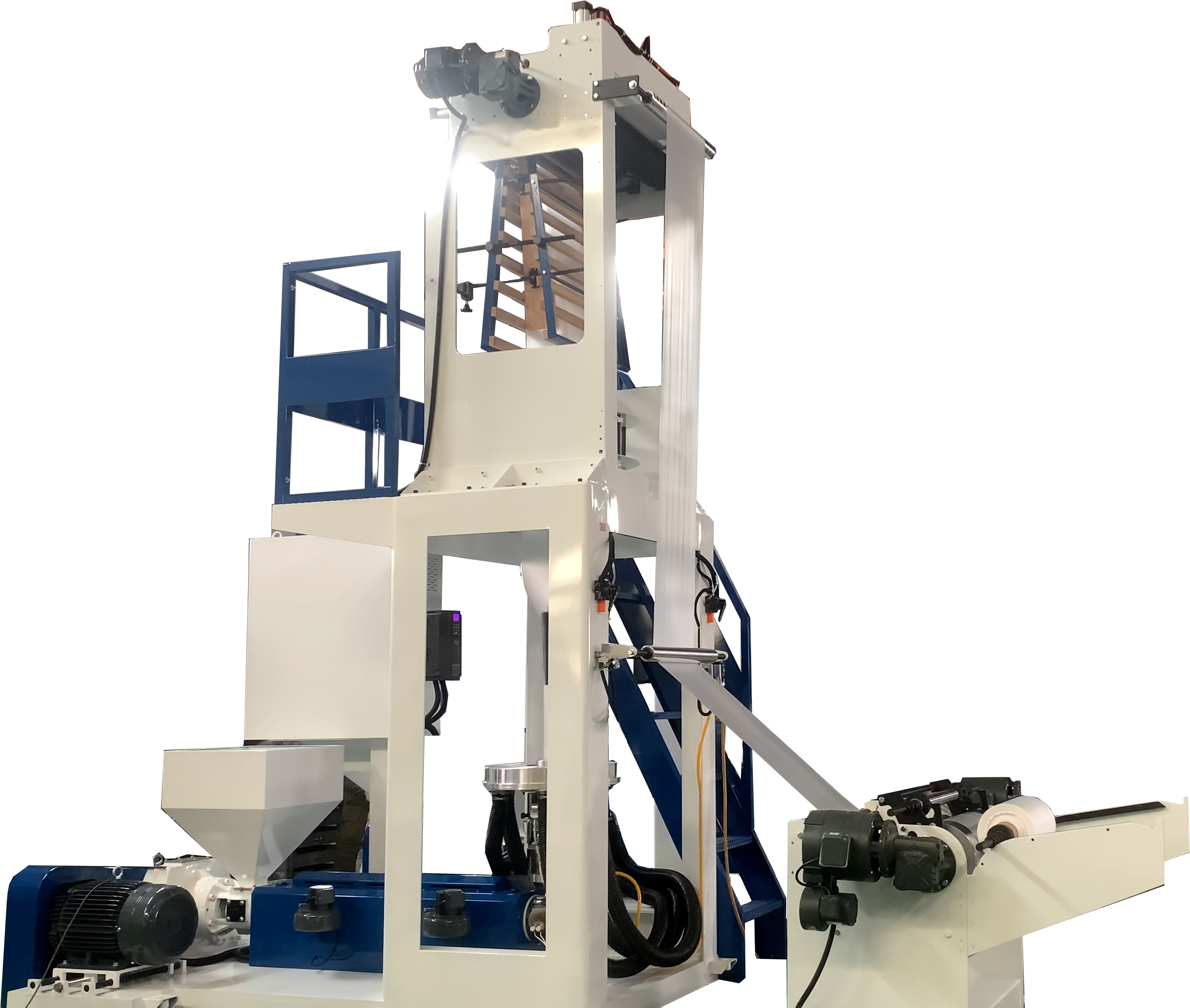

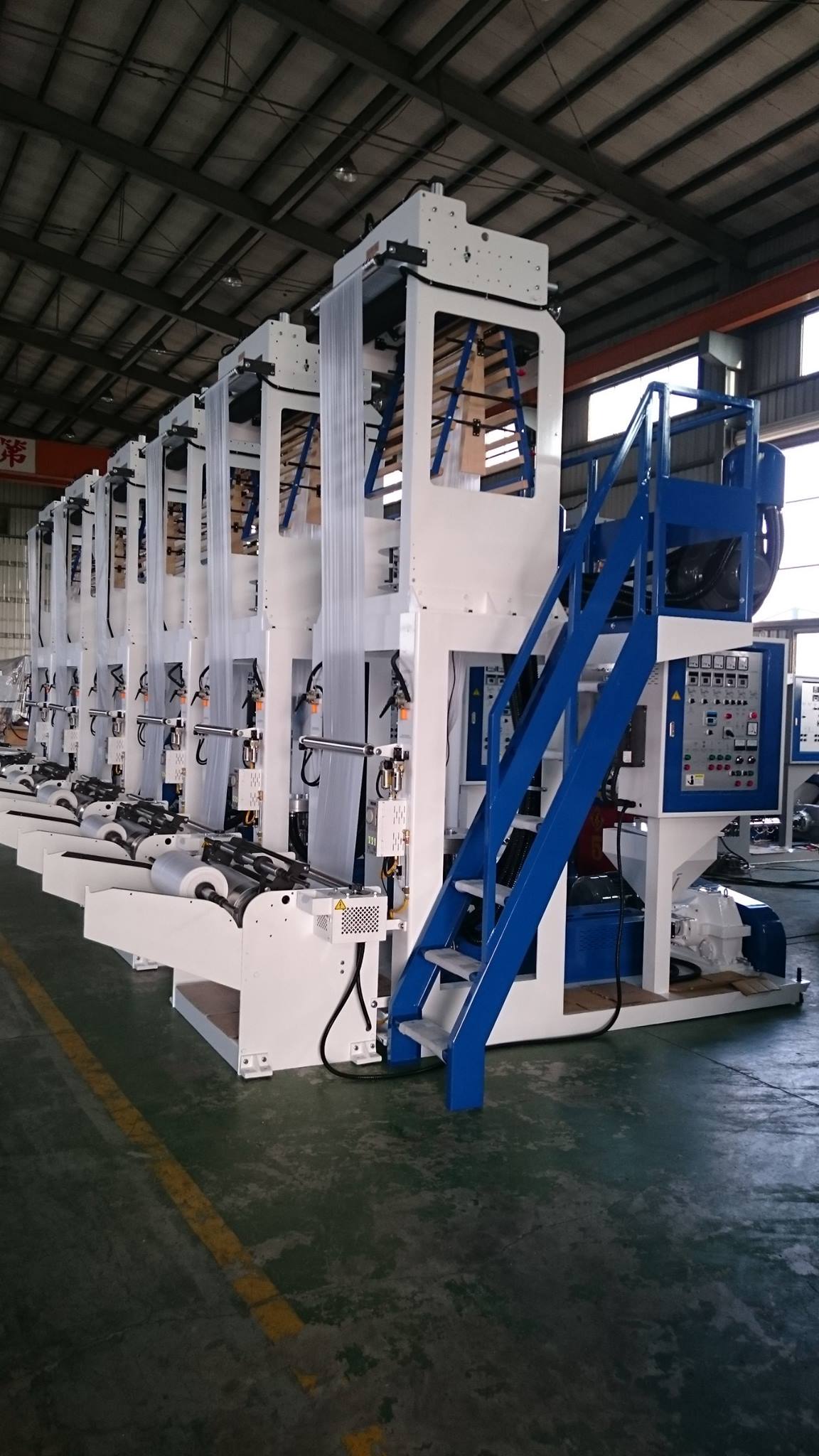

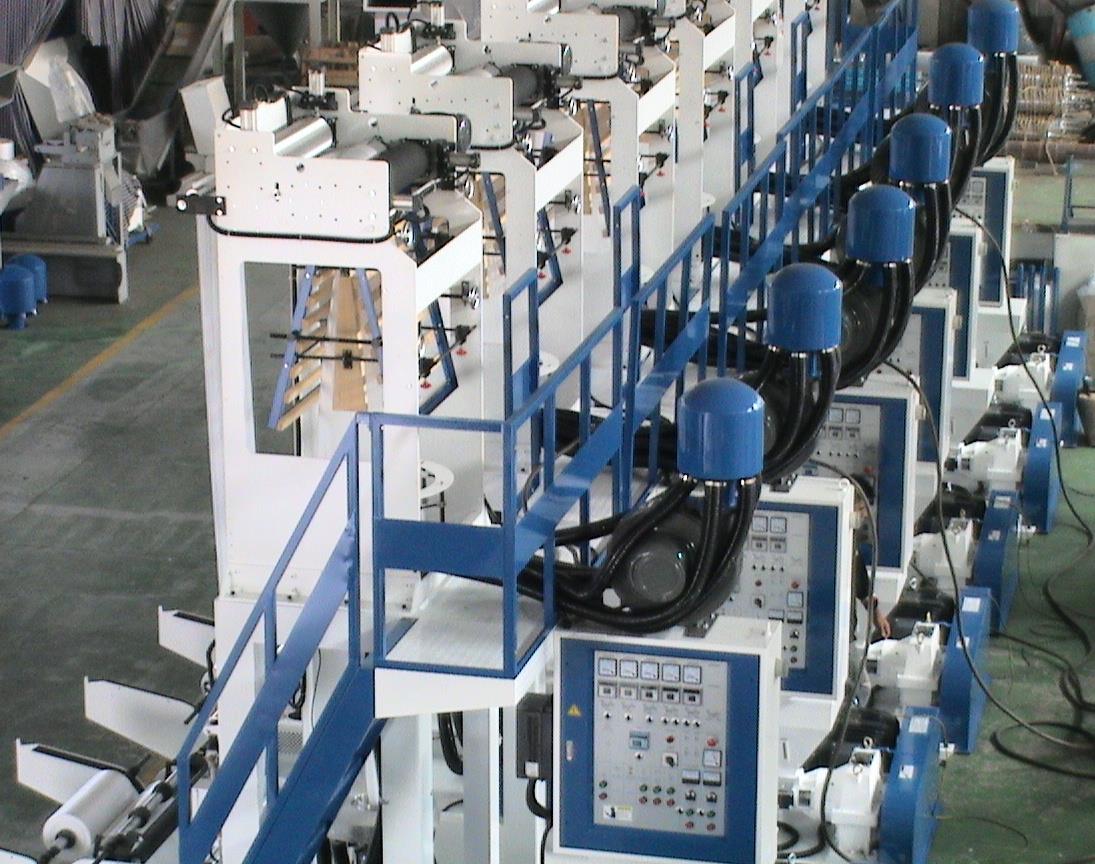

HB-Series in action
