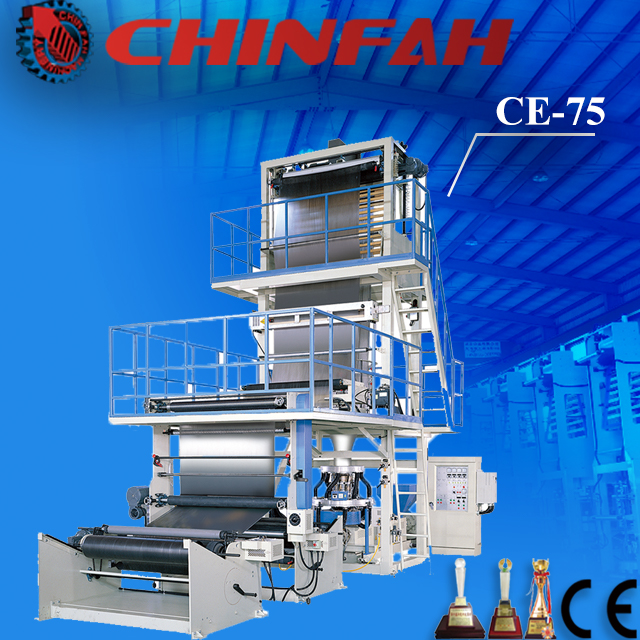

CE-Series Multiple-Layer Blown Film Machine
A two-layer blown film machine built for high-quality multi-layer film — well suited to agricultural film such as greenhouse covers and crop protection.
Build your inquiry
Fill this in and we'll turn it into a ready-to-send message.
Fill in the fields above — your inquiry summary will build itself here.
Why Choose Us
Built for the greenhouse, and beyond
A strong steel structure keeps film stable and output consistent — the reason CE-Series is a go-to for agricultural film producers.
4
Models — YF-CE-40 to YF-CE-85
45–160
kg/hr output range
750–2000mm
Film width range
Built for agriculture
Ideal for greenhouse covers and crop protection film that need to hold up outdoors.
Stable steel structure
Reduces vibration for consistent film quality run after run.
High-capacity die head
Special die head and air ring engineered for high capacity and excellent film flow.
Applications
What you can produce with CE-Series
Greenhouse & Agricultural Film
Table Covers / Sofra Rolls
Mattress Covering Film
Courier (HDL) Bags
Flat Film Rolls
Food Packaging & Shopping Bags
Specifications
Engineered piece by piece
- Two-layer blown film machine designed for high-quality multi-layer films
- Strong steel structure for film stability and consistent output
- Take-up tower is height-adjustable with a pneumatic pinch roller
- Surface winder supports larger diameters with no offset and easy operation
Optional equipment
Auto loader
Film width controller
Meter counter
Surface static treater (corona)
Embossing roller
Air shaft
Back-to-back (double) winder
Rotary device
Compare models
| Spec | YF-CE-40 | YF-CE-55 | YF-CE-65 | YF-CE-85 |
|---|---|---|---|---|
| Film width | 750mm | 1100mm | 1600mm | 2000mm |
| Extrusion output | 45–55 kg/hr | 100 kg/hr | 120–140 kg/hr | 140–160 kg/hr |
| Screw diameter | 40mm | 55mm | 65mm | 85mm |
| Roller width | 850mm | 1200mm | 1800mm | 2200mm |
| Film thickness | HDPE: 0.02–0.20mm | |||
Contact CHINFAH to confirm the exact configuration for your line.
